Ferraz Shawmut

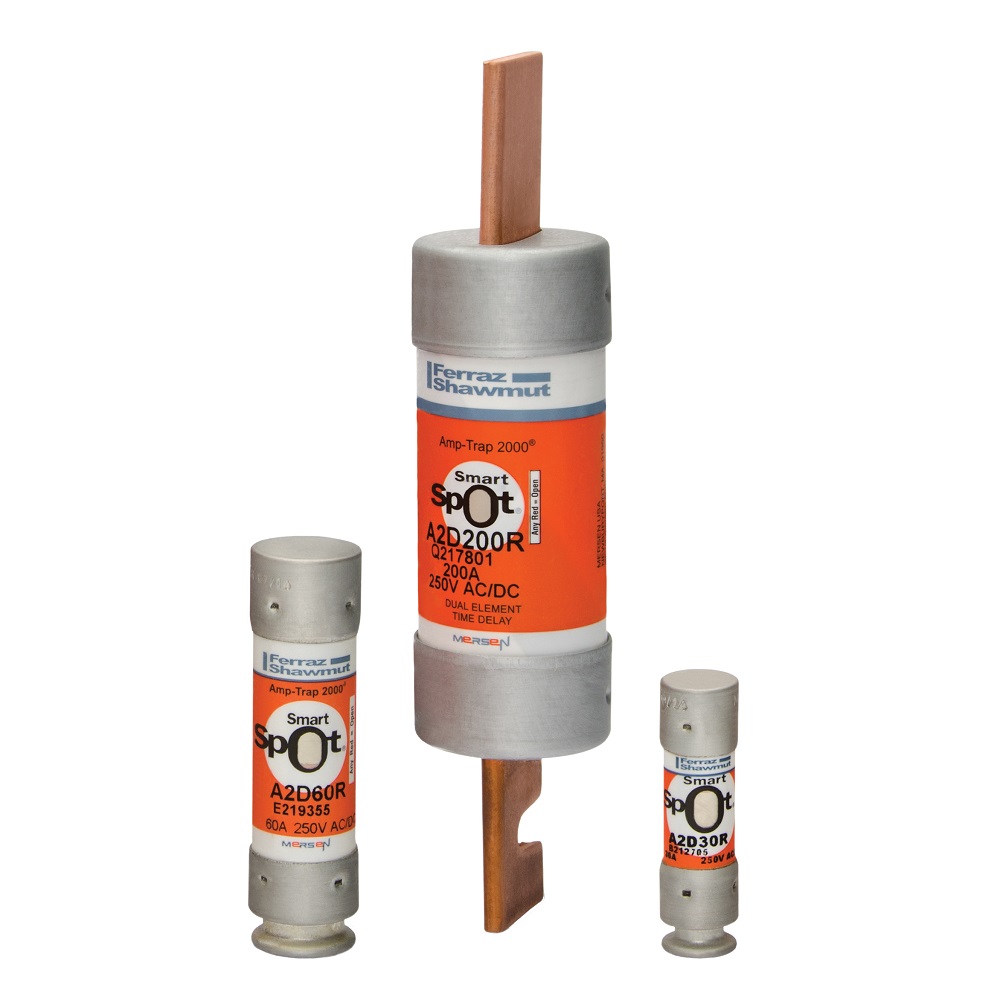

A2D-R - Class RK1 - Time Delay Fuse
Key Features & Benefits
Amp-Trap 2000 SmartSpot time-delay A2D-R fuses provide IEC Type 2 "no damage" protection to existing mains, feeders, and branch circuits serving motor and non-motor loads. A2D-R fuses will open fast enough under extreme fault conditions for maximum short circuit protection to prevent damage to motor starters, switches, and other circuit components, yet also provide the time-delay needed for motor in-rush currents. A2D-R fuses can be used to replace older 250V Class H, K or RK5 fuses already installed in the field.
Applications
- Motors
- Safety Switches
- Transformers
- Branch Circuit Protection
- Disconnects
- Control Panels
- All General Purpose Circuits
| Compare / Item | Properties | Availability | Lead Time | Price | Quantity | UOM |
|---|---|---|---|---|---|---|
|

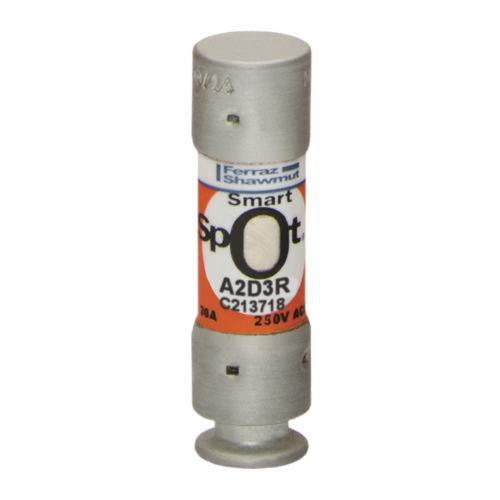

Brand: Ferraz Shawmut Amperage Rating: 3 A Ferraz Shawmut A2D3R Ferraz Shawmut Amp-Trap 2000® Time Delay Class RK1 Fuse, 3 A, 250 VAC/VDC |
|
|
|
|
|
|

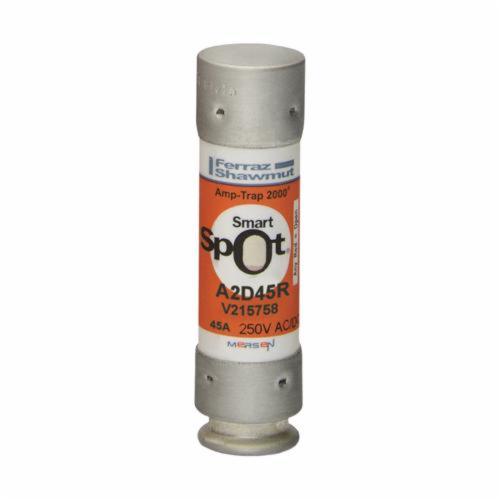

Brand: Ferraz Shawmut Amperage Rating: 45 A Ferraz Shawmut A2D45R Ferraz Shawmut Amp-Trap 2000® Time Delay Class RK1 Fuse, 45 A, 250 VAC/VDC |
|
|
|
|
|
|
Brand: Ferraz Shawmut Amperage Rating: 100 A Ferraz Shawmut A2D100R Ferraz Shawmut Amp-Trap 2000® Time Delay Class RK1 Fuse, 100 A, 250 VAC/VDC |
|
|
|
|
