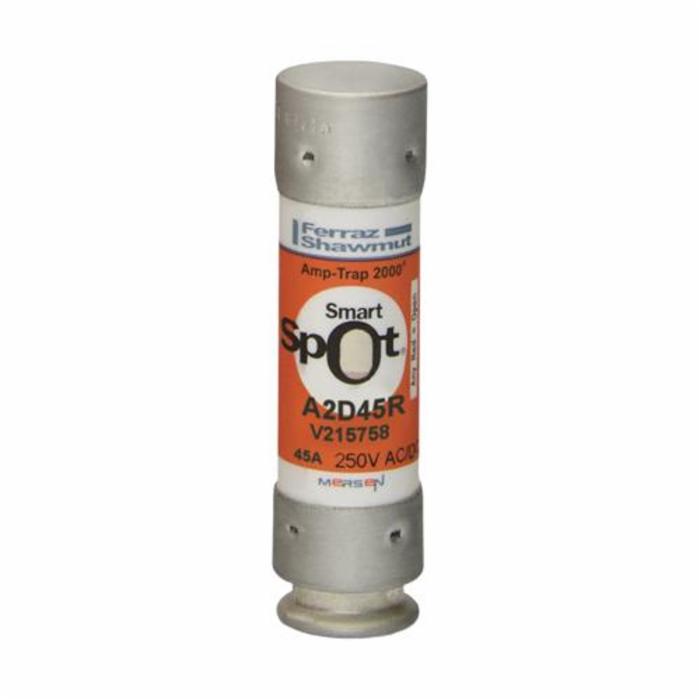

Ferraz Shawmut Amp-Trap® 2000 SmartSpot® Power Fuse, Current Limiting Low Voltage North American Time Delay, Series: A2D-R, Indicating, Rejection, 45 A, 250 VAC, 200 kA Interrupt, Class: RK1, Ferrule Terminal, Clip Mounting, Cylindrical Body, Dual Element, Polytube, 13/16 in Dia x 3 in L Body
-
Manufacturer: Mersen
-
Brand: Ferraz Shawmut
-
PN: A2D45R
-
CX SKU: 996356
-
UPC: 782001990923
- Type: Time Delay Fuse
- Series: A2D-R
- Class: RK1
- Amperage Rating: 45 A
- Voltage Rating: 250 VAC/VDC
- Indication: Indicating
- Rejection/Non-Rejection: Rejection
- Interrupt Rating : 200/100 kA
- Terminal Type : Ferrule
- Terminal Material : Tin-Plated Copper
- Body Style : Cylindrical
- Element : Dual
- Mounting Type : Clip
- Material : PolyTube
- Body Size : 13/16 in Dia x 3 in L
- Application : Motors, Safety Switches, Transformers, Branch Circuit Protection, Disconnects, Control Panels, All General Purpose Circuits
|
-
Specification Sheet
https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/DS-A2D-R-A6D-R-Class-RK1-Time-Delay-Mersen.pdf
