Ferraz Shawmut

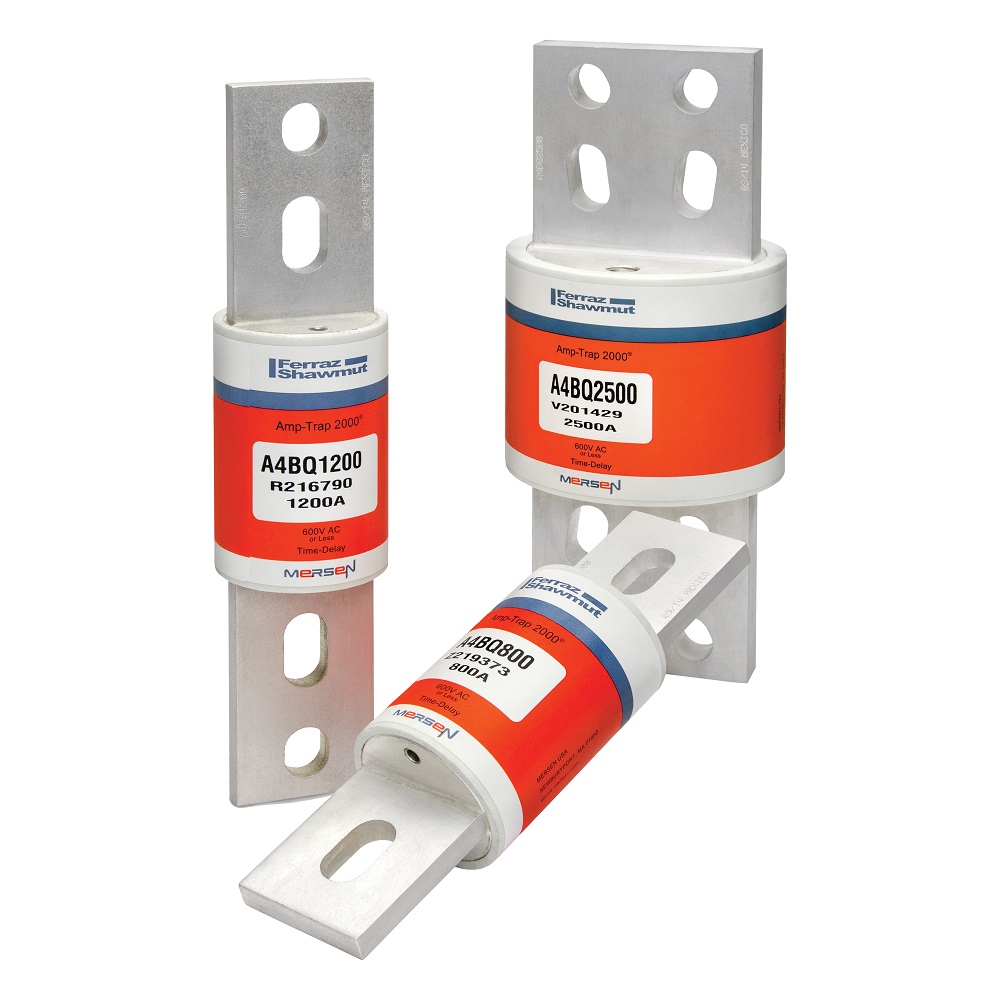

A4BQ - Class L - Time Delay Fuse
Key Features & Benefits
Amp-Trap 2000 A4BQ fuses are 20 percent more current limiting than any other Class L fuse on the market. When correctly coordinated, they bring a superior level of protection to service entrance equipment. Downstream circuit components have maximum protection against short circuit let-thru current. A4BQ's built-in 4-second time-delay characteristic (at 500percent of rated current) accommodates harmless inrush currents with no nuisance opening.
Applications
- Mains
- Feeders
- Large Motors
- Lighting, Heating & General Loads
- Circuit Breaker Back-up
- DC Rated: UPS DC Links, Battery Disconnects, Other DC Applications
| Compare / Item | Properties | Availability | Lead Time | Price | Quantity | UOM |
|---|---|---|---|---|---|---|
|
Brand: Ferraz Shawmut Amperage Rating: 200 A Ferraz Shawmut A4BQ200 Ferraz Shawmut Amp-Trap 2000® Time Delay Class L Fuse, 200 A, 600 VAC/500 VDC |
|
|
|
|
|
|
|
Brand: Ferraz Shawmut Amperage Rating: 400 A Ferraz Shawmut A4BQ400 Ferraz Shawmut Amp-Trap 2000® Time Delay Class L Fuse, 400 A, 600 VAC/500 VDC |
|
|
|
|
|
|

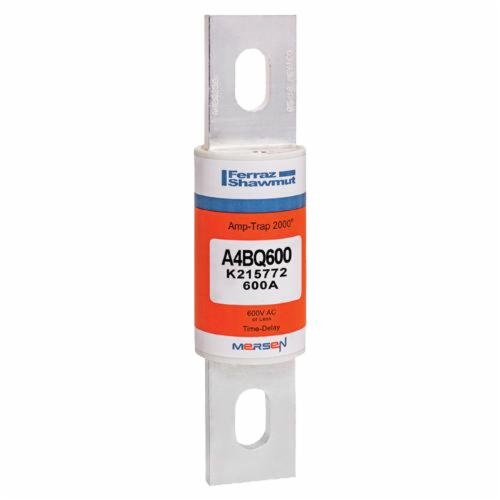

Brand: Ferraz Shawmut Amperage Rating: 600 A Ferraz Shawmut A4BQ600 Ferraz Shawmut Amp-Trap 2000® Time Delay Class L Fuse, 600 A, 600 VAC/500 VDC |
|
|
|
|
|
|
|
Brand: Ferraz Shawmut Amperage Rating: 601 A Ferraz Shawmut A4BQ601 Ferraz Shawmut Amp-Trap 2000® Time Delay Class L Fuse, 601 A, 600 VAC/500 VDC |
|
|
|
|
|
|

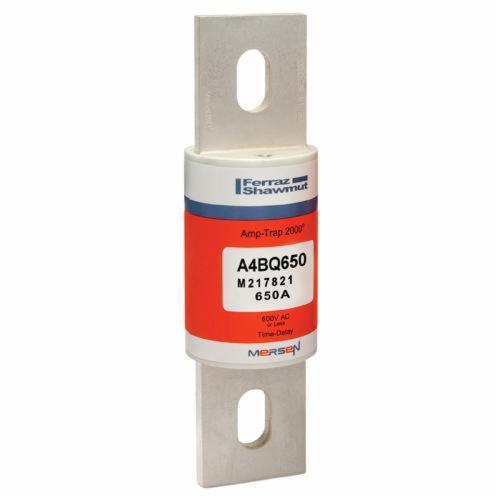

Brand: Ferraz Shawmut Amperage Rating: 650 A Ferraz Shawmut A4BQ650 Ferraz Shawmut Amp-Trap 2000® Time Delay Class L Fuse, 650 A, 600 VAC/500 VDC |
|
|
|
|
|
|
|
Brand: Ferraz Shawmut Amperage Rating: 700 A Ferraz Shawmut A4BQ700 Ferraz Shawmut Amp-Trap 2000® Time Delay Class L Fuse, 700 A, 600 VAC/500 VDC |
|
|
|
|
|
|
|
Brand: Ferraz Shawmut Amperage Rating: 800 A Ferraz Shawmut A4BQ800 Ferraz Shawmut Amp-Trap 2000® Time Delay Class L Fuse, 800 A, 600 VAC/500 VDC |
|
|
|
|
|
|
|
Brand: Ferraz Shawmut Amperage Rating: 1000 A Ferraz Shawmut A4BQ1000 Ferraz Shawmut Amp-Trap 2000® Time Delay Class L Fuse, 1000 A, 600 VAC/500 VDC |
|
|
|
|
|
|
|
Brand: Ferraz Shawmut Amperage Rating: 1200 A Ferraz Shawmut A4BQ1200 Ferraz Shawmut Amp-Trap 2000® Time Delay Class L Fuse, 1200 A, 600 VAC/500 VDC |
|
|
|
|
|
|
|
Brand: Ferraz Shawmut Amperage Rating: 1600 A Ferraz Shawmut A4BQ1600 Ferraz Shawmut Amp-Trap 2000® Time Delay Class L Fuse, 1600 A, 600 VAC/500 VDC |
|
|
|
|
|
|
|
Brand: Ferraz Shawmut Amperage Rating: 2000 A Ferraz Shawmut A4BQ2000 Ferraz Shawmut Amp-Trap 2000® Time Delay Class L Fuse, 2000 A, 600 VAC/500 VDC |
|
|
|
|
|
|
|
Brand: Ferraz Shawmut Amperage Rating: 2500 A Ferraz Shawmut A4BQ2500 Ferraz Shawmut Amp-Trap 2000® Time Delay Class L Fuse, 2500 A, 600 VAC/500 VDC |
|
|
|
|
|
|
|
Brand: Ferraz Shawmut Amperage Rating: 3000 A Ferraz Shawmut A4BQ3000 Ferraz Shawmut Amp-Trap 2000® Time Delay Class L Fuse, 3000 A, 600 VAC/500 VDC |
|
|
|
|
|
|
|
Brand: Ferraz Shawmut Amperage Rating: 4000 A Ferraz Shawmut A4BQ4000 Ferraz Shawmut Amp-Trap 2000® Time Delay Class L Fuse, 4000 A, 600 VAC/500 VDC |
|
|
|
|
