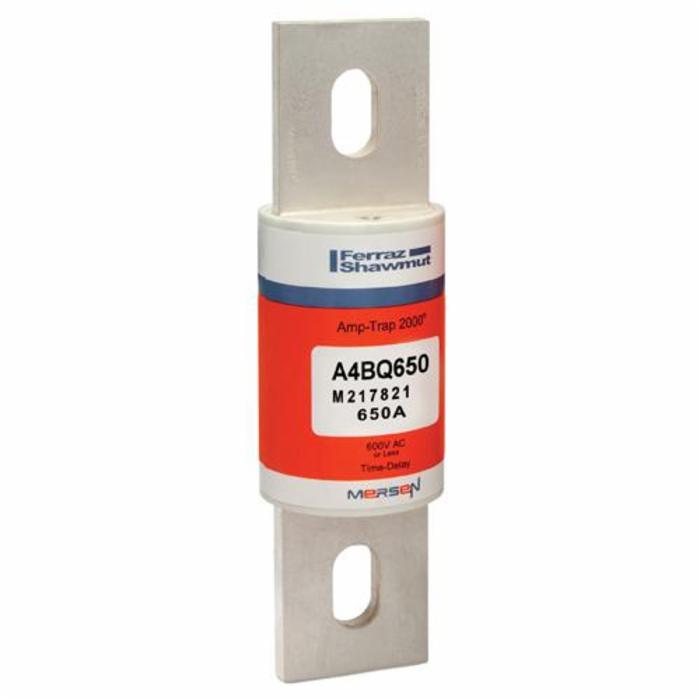

Ferraz Shawmut Amp-Trap® 2000 SmartSpot® Power Fuse, Current Limiting Low Voltage Time Delay, Series: A4BQ, Non-Indicating, Rejection, 650 A, 600 VAC, 200 kA Interrupt, Class: L, Blade Terminal, Bolt-On Mounting, Cylindrical Body, Dual Element, GMG, 2-1/2 in Dia x 8-5/8 in L Body
-
Manufacturer: Mersen
-
Brand: Ferraz Shawmut
-
PN: A4BQ650
-
CX SKU: 987929
-
UPC: 782001930011
- Type: Time Delay Fuse
- Series: A4BQ
- Class: L
- Amperage Rating: 650 A
- Voltage Rating: 600 VAC/500 VDC
- Indication: Non-Indicating
- Rejection/Non-Rejection: Rejection
- Interrupt Rating : 200/100 kA
- Response Time : 4 s at 500%
- Terminal Type : Blade
- Terminal Material : Silver-Plated Copper
- Body Style : Cylindrical
- Element : Dual
- Mounting Type : Bolt-On
- Material : GMG
- Body Size : 2-1/2 in Dia x 8-5/8 in L
- Application : Mains, Feeders, Large Motors, Lighting, Heating, General Loads, Circuit Breaker Back-Up, DC Rated UPS DC Links, Battery Disconnects, Other DC Applications
|
-
Specification Sheet
https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/DS-A4BQ-Class-L-Time-Delay-Mersen.pdf
