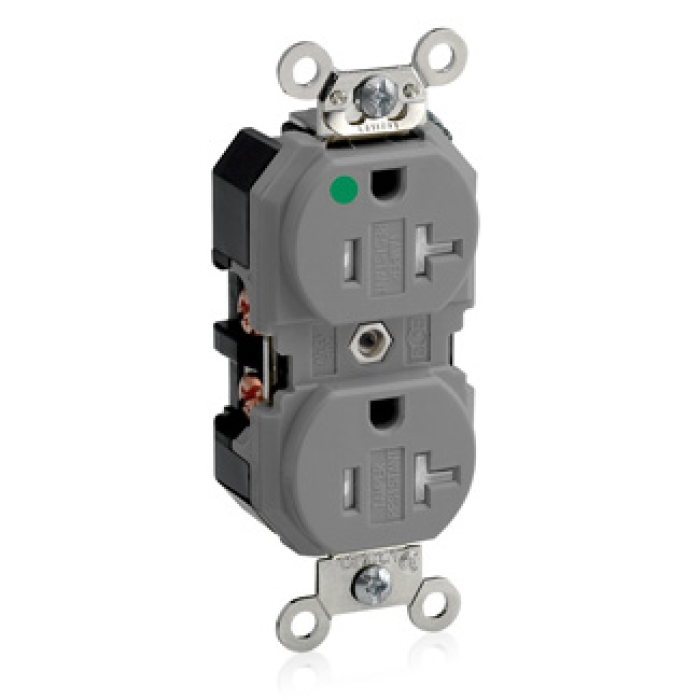

LevitonĀ® Straight Blade Duplex Receptacle, Tamper-Resistant, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wire, NEMA 5-20R, Extra Heavy Duty Hospital Grade, -40 to 60 deg C, Back and Side Wired Terminal, Thermoplastic, Gray, 4.06 in H x 1.51 in W x 1.23 in D
All Leviton Hospital Grade Receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high-abuse tolerance, including health care facilities, manufacturing plants and schools.
-
Manufacturer: Leviton Manufacturing
-
Brand: Leviton®
-
PN: 8300-SGG
-
CX SKU: 858310
-
UPC: 078477057209
- Type: Straight Blade Receptacle
- Style: Traditional Duplex
- Grade: Extra Heavy-Duty Hospital
- NEMA Rating: 5-20R
- Voltage Rating: 125 VAC
- Amperage Rating: 20 A
- Horsepower: 1 hp
- Number of Wires : 3
- Number of Poles : 2
- Temperature Rating : -40 to 60 deg C
- Terminal Type : Back and Side Wired
- Material : Thermoplastic
- Color : Gray
- Dimensions : 4.06 in H x 1.51 in W x 1.23 in D
|
-
Brochure
https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/Straight_Blade_Receptacle_Catalog_Q-1101H.pdf
