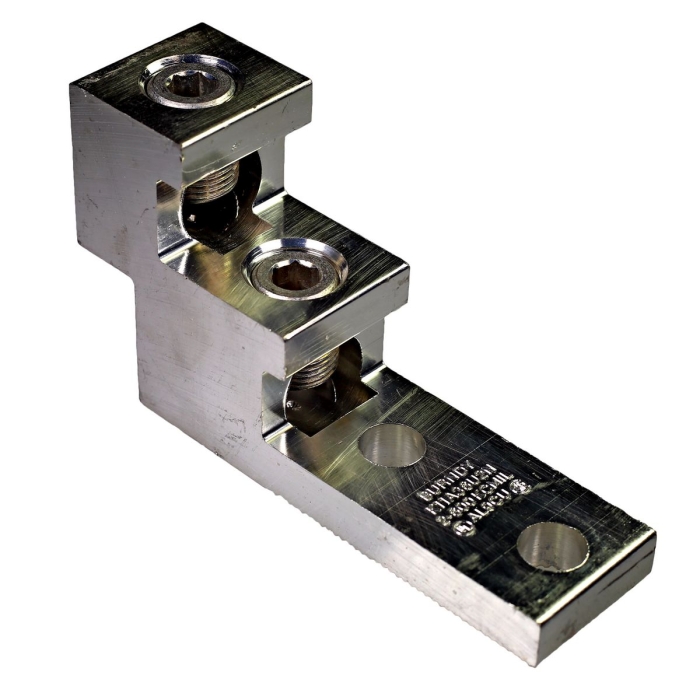

BURNDY® Aluminum Dual Rated Mechanical Lug, 2 Conductor, 2 AWG to 600 kcmil Conductor, 2 Hole Mount, 1/2 in Stud
AL9CU Dual Rated for both copper an aluminum conductor 1/2 in. diameter stud holes spaced 1-3/4 in. on center (NEMA-spacing) 600 Volt Rated, Range Taking conductor port
-
Manufacturer: HUBBELL
-
Brand: BURNDY®
-
PN: K11A36U2N
-
CX SKU: 1092688
-
UPC: 78181067014
- Type: Universal Terminal
- Conductor Type: Copper/Aluminum
- Number of Conductors: 2
- Conductor Size: 2 AWG to 600 kcmil
- Number of Mounting Holes: 2
- Stud Size: 1/2 in
- Stud Hole Diameter: 0.41 in
- Head Style : Hex
- Pad Length : 2.75 in
- Pad Width : 1.50 in
- Pad Thickness : 0.50 in
- Overall Length : 5.34 in
- Overall Height : 3.00 in
- Voltage Rating : 600 VAC
- Temperature Rating : 194 deg F
- Installation Torque : 375 in-lb
- Material : Aluminum
- Finish : Tin Plated
|
