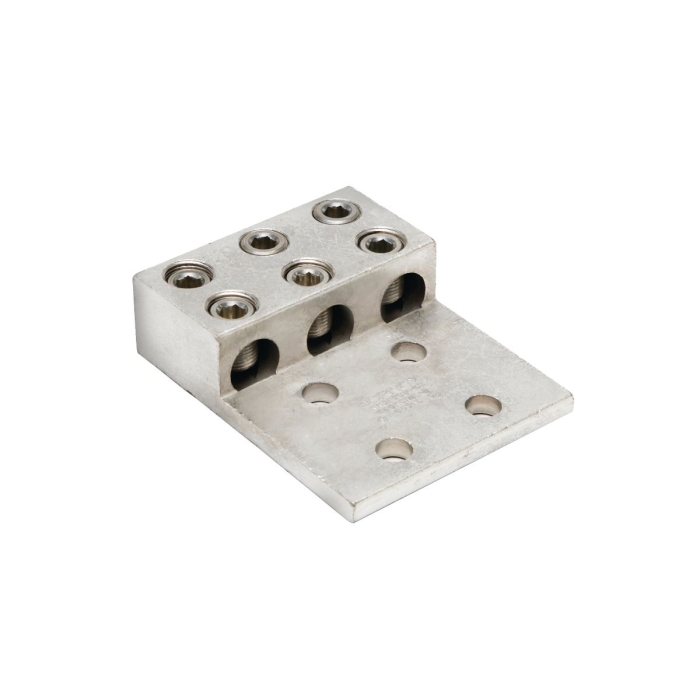

BURNDY® Aluminum Dual Rated Mechanical Lug, 3 Conductor, 2 AWG to 600 kcmil Conductor, 4 Hole Mount, 1/2 in Stud
Universal Terminals are constructed from high strength aluminum alloy and electro tin-plated to provide low contact resistance.
-
Manufacturer: HUBBELL
-
Brand: BURNDY®
-
PN: KK3A36U4N
-
CX SKU: 1092710
-
UPC: 78181037046
- Type: Universal Terminal
- Conductor Type: Copper/Aluminum
- Number of Conductors: 3
- Conductor Size: 2 AWG to 600 kcmil
- Number of Mounting Holes: 4
- Stud Size: 1/2 in
- Stud Hole Diameter: 0.56 in
- Head Style : Hex
- Pad Length : 3.00 in
- Pad Width : 4.22 in
- Pad Thickness : 0.38 in
- Overall Length : 5.50 in
- Overall Height : 1.52 in
- Voltage Rating : 600 VAC
- Temperature Rating : 194 deg F
- Installation Torque : 375 in-lb
- Material : Aluminum
- Finish : Tin Plated
|
-
