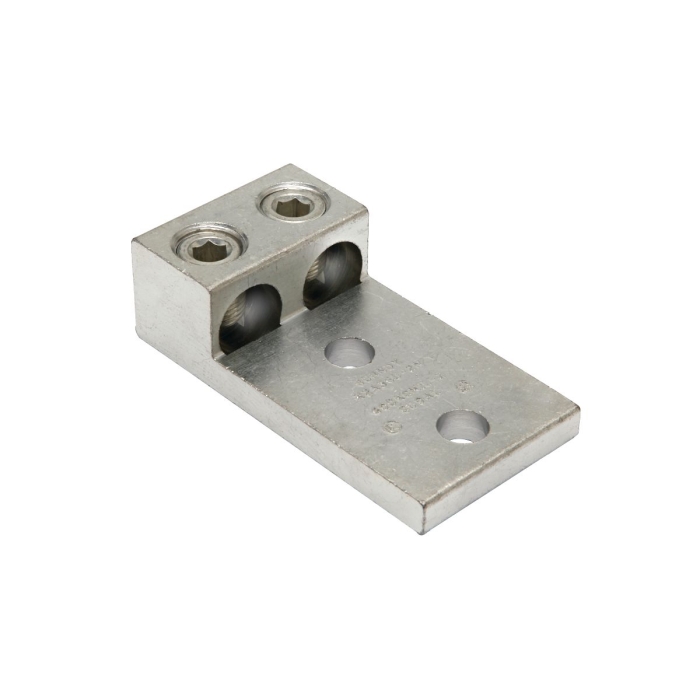

BURNDY® Aluminum Dual Rated Mechanical Lug, 2 Conductor, 6 AWG to 350 kcmil Conductor, 2 Hole Mount, 1/2 in Stud
Burndy's two conductor terminal lugs are specifically engineered to meet the demanding applications of both the Central Office and Wireless Communication markets. This connector is for copper and aluminum conductors.
-
Manufacturer: HUBBELL
-
Brand: BURNDY®
-
PN: K2A31U2N
-
CX SKU: 1092692
-
UPC: 78181060016
- Type: Universal Terminal
- Conductor Type: Copper/Aluminum
- Number of Conductors: 2
- Conductor Size: 6 AWG to 350 kcmil
- Number of Mounting Holes: 2
- Stud Size: 1/2 in
- Stud Hole Diameter: 0.56 in
- Head Style : Slotted
- Pad Length : 3.00 in
- Pad Width : 2.31 in
- Pad Thickness : 0.31 in
- Overall Length : 4.50 in
- Overall Height : 1.39 in
- Voltage Rating : 600 VAC
- Temperature Rating : 194 deg F
- Installation Torque : 275 in-lb
- Material : Aluminum
- Finish : Tin Plated
|
-
