BURNDY® YA272TC38 | Connexion
BURNDY® YA272TC38 1092732

BURNDY®

2-Hole Copper Compression Lug

  • loading
  • Manufacturer: HUBBELL
  • Brand Name: BURNDY®
  • PN: YA272TC38
  • PN: YA272TC38
  • UPC: 78181001985
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

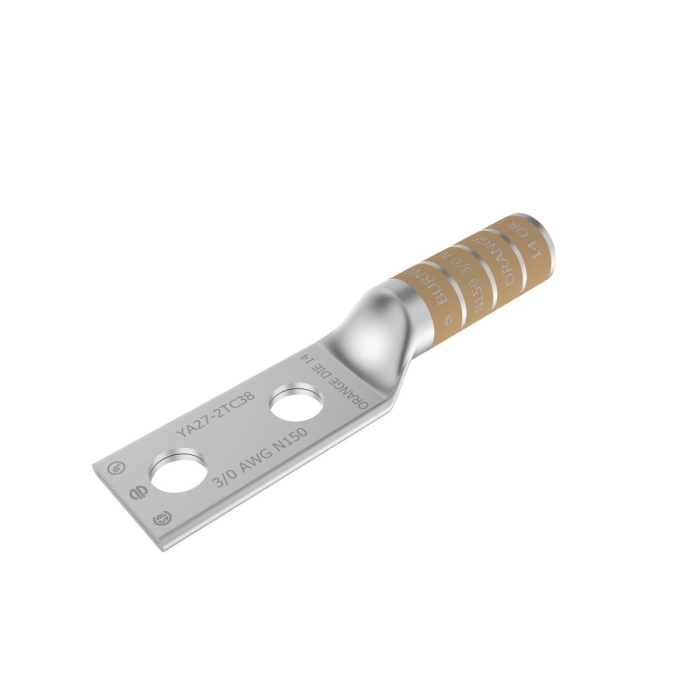

BURNDY® HYLUG™ 2-Hole Copper Compression Lug, Long Barrel, 3/0 AWG Conductor, 3/8 in Stud, Orange Color Code

  • Manufacturer: HUBBELL
  • Brand: BURNDY®
  • PN: YA272TC38
  • CX SKU: 1092732
  • UPC: 78181001985
  • Type: Compression Lug
  • Number of Holes: 2
  • Barrel Type: Long
  • Inspection Hole: No
  • Conductor Size: 3/0 AWG
  • Color Code: Orange
  • Die Code: 14
  • Stud Size : 3/8 in
  • Stud Hole Diameter : 0.40 in
  • Outside Diameter : 0.62 in
  • Barrel Length : 1.5 in
  • Pad Width : 0.90 in
  • Overall Length : 3.82 in
  • Hole Spacing : 1 in
  • Hole Offset : 0.12 in
  • Pad Thickness : 0.12 in
  • Wire Strip Length : 1-9/16 in
  • Barrel Style : Chamfered
  • Tongue Angle : Straight
  • pdfLine Drawing https://econtent.adhq.com/dam/Original/626/IDW_DOCUMENT_c9a3f3898ddb022f19cf035805b930fef84fdcdd20dd6410b2d487b1cfe75761.pdf
  • pdfCatalog https://econtent.adhq.com/dam/Original/635/IDW_DOCUMENT_9a92cf2f4489ad07b9aad6ff648b8f17c35bf07458fa53026b094998648d9f3b.pdf
  • pdfSpecification Sheet https://econtent.adhq.com/dam/Original/637/IDW_DOCUMENT_f9b0526688e5b6b81bf6999318418ab2be16934167cb75da504933d8009cc159.pdf
