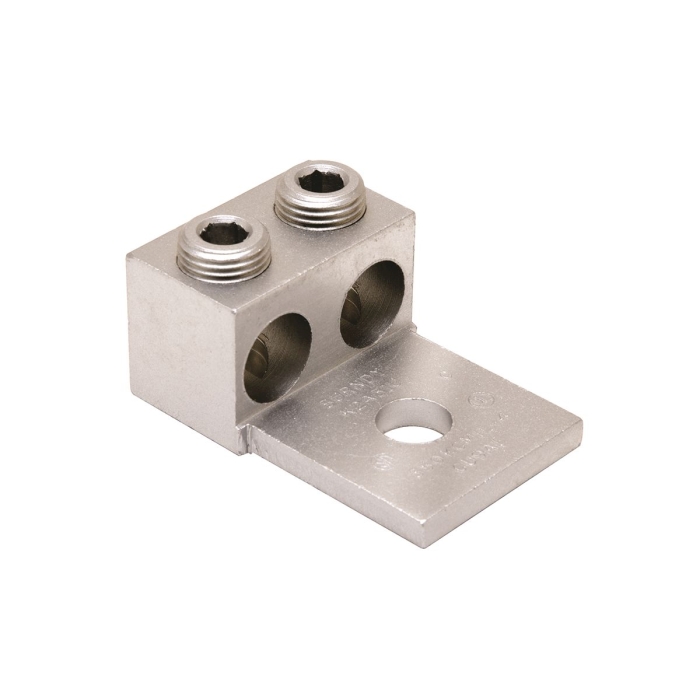

BURNDY® Aluminum Dual Rated Mechanical Lug, 2 Conductor, 14 to 2/0 AWG Conductor, 1 Hole Mount, 1/4 in Stud
Burndy's two conductor terminal lugs are specifically engineered to meet the demanding applications of both the Central Office and Wireless Communication markets. This connector is for copper and aluminum conductors.
-
Manufacturer: HUBBELL
-
Brand: BURNDY®
-
PN: K2A26U
-
CX SKU: 1092690
-
UPC: 78181060005
- Type: Universal Terminal
- Conductor Type: Copper/Aluminum
- Number of Conductors: 2
- Conductor Size: 14 to 2/0 AWG
- Number of Mounting Holes: 1
- Stud Size: 1/4 in
- Stud Hole Diameter: 0.27 in
- Head Style : Slotted
- Pad Length : 0.81 in
- Pad Width : 1.25 in
- Pad Thickness : 0.19 in
- Overall Length : 1.47 in
- Overall Height : 0.80 in
- Voltage Rating : 600 VAC
- Temperature Rating : 194 deg F
- Installation Torque : 120 in-lb
- Material : Aluminum
- Finish : Tin Plated
|
-
Line Drawing
https://econtent.adhq.com/dam/Original/1002/BURNDY_K2A26U_Line_Drawing.pdf
-
Specification Sheet
https://econtent.adhq.com/dam/Original/1002/BURNDY_K2A26U_Specification_Sheet.pdf
