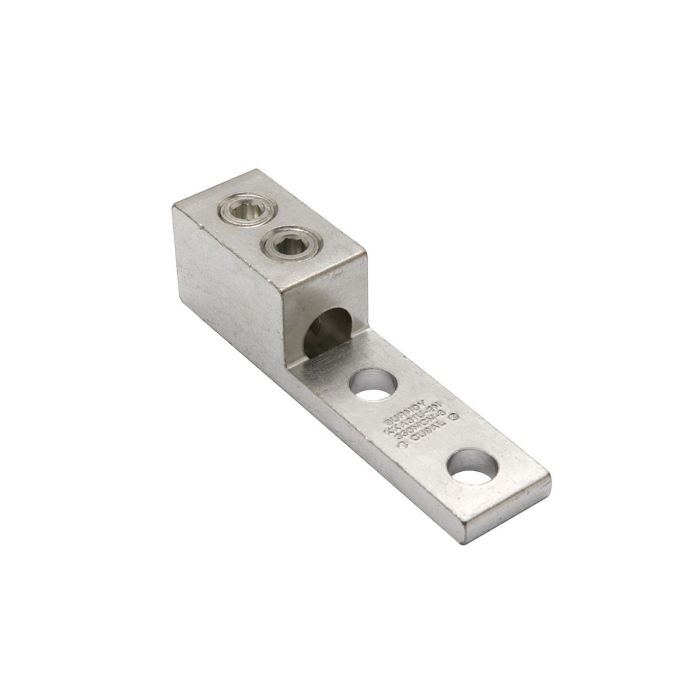

BURNDY® Aluminum Dual Rated Mechanical Lug, 1 Conductor, 6 AWG to 350 kcmil Conductor, 2 Hole Mount, 1/2 in Stud
Universal Terminals are constructed from high strength aluminum alloy and electro tin-plated to provide low contact resistance.
-
Manufacturer: HUBBELL
-
Brand: BURNDY®
-
PN: KKA31U2N
-
CX SKU: 1092711
-
UPC: 78181037043
- Type: Universal Terminal
- Conductor Type: Copper/Aluminum
- Number of Conductors: 1
- Conductor Size: 6 AWG to 350 kcmil
- Number of Mounting Holes: 2
- Stud Size: 1/2 in
- Stud Hole Diameter: 0.56 in
- Head Style : Hex
- Pad Length : 3.16 in
- Pad Width : 1.25 in
- Pad Thickness : 0.38 in
- Overall Length : 5.50 in
- Overall Height : 1.52 in
- Voltage Rating : 600 VAC
- Temperature Rating : 194 deg F
- Installation Torque : 275 in-lb
- Material : Aluminum
- Finish : Tin Plated
|
-
