BURNDY® YA1C2TC38 | Connexion
BURNDY® YA1C2TC38 1092720

BURNDY®

2-Hole Copper Compression Lug

  • loading
  • Manufacturer: HUBBELL
  • Brand Name: BURNDY®
  • PN: YA1C2TC38
  • PN: YA1C2TC38
  • UPC: 78181001979
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

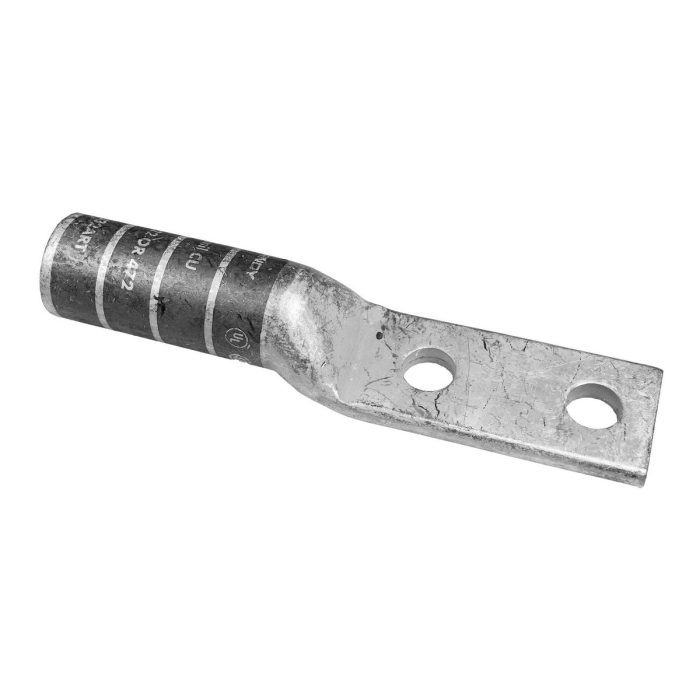

BURNDY® HYLUG™ 2-Hole Copper Compression Lug, Long Barrel, 2 AWG Conductor, 1/4 in Stud, Brown Color Code

  • Manufacturer: HUBBELL
  • Brand: BURNDY®
  • PN: YA1C2TC38
  • CX SKU: 1092720
  • UPC: 78181001979
  • Type: Compression Lug
  • Number of Holes: 2
  • Barrel Type: Long
  • Inspection Hole: No
  • Conductor Size: 2 AWG
  • Color Code: Brown
  • Die Code: 10
  • Stud Size : 1/4 in
  • Stud Hole Diameter : 0.40 in
  • Outside Diameter : 0.46 in
  • Barrel Length : 1-1/4 in
  • Pad Width : 0.60 in
  • Overall Length : 2.86 in
  • Hole Spacing : 1 in
  • Hole Offset : 0.41 in
  • Pad Thickness : 0.11 in
  • Wire Strip Length : 1-5/16 in
  • Barrel Style : Chamfered
  • Tongue Angle : Straight
  • pdfCatalog https://econtent.adhq.com/dam/Original/474/IDW_DOCUMENT_bdf97cc38000d8a52eb41f23ed65c1f8d449d5f0008878b7f912c4dc0db32222.pdf
  • pdfSpecification Sheet https://econtent.adhq.com/dam/Original/476/IDW_DOCUMENT_ff0d14b7bf33df1bab738a220c303a6adde495ff91d79b000b7d90ee4cd50539.pdf
  • pdfLine Drawing https://econtent.adhq.com/dam/Original/626/IDW_DOCUMENT_c9a3f3898ddb022f19cf035805b930fef84fdcdd20dd6410b2d487b1cfe75761.pdf
