BURNDY® YA36A3 | Connexion
BURNDY® YA36A3 1092752

BURNDY®

2-Hole Aluminum Dual Rated Compression Lug

  • loading
  • Manufacturer: HUBBELL
  • Brand Name: BURNDY®
  • PN: YA36A3
  • PN: YA36A3
  • UPC: 78181076125
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

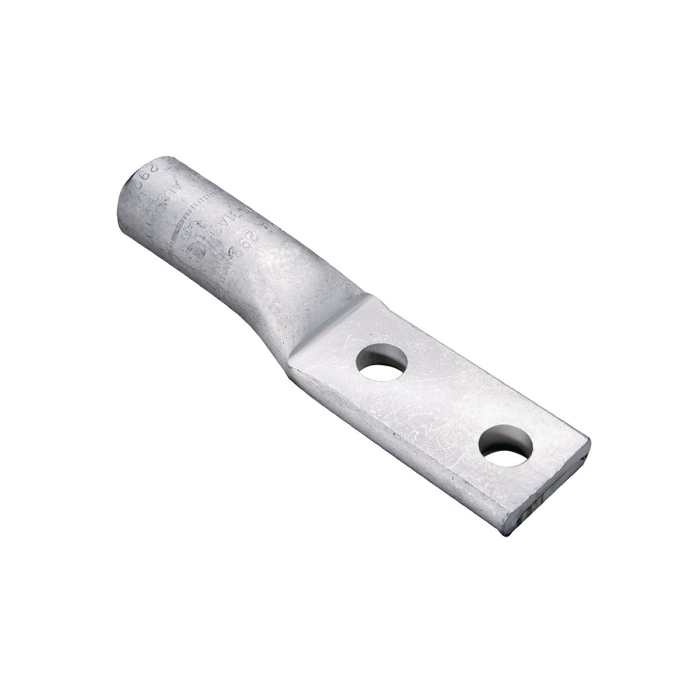

BURNDY® HYLUG™ 2-Hole Aluminum Dual Rated Compression Lug, Standard Barrel, 2/0 AWG Conductor, 1/2 in Stud, Olive Color Code

  • Manufacturer: HUBBELL
  • Brand: BURNDY®
  • PN: YA36A3
  • CX SKU: 1092752
  • UPC: 78181076125
  • Type: Compression Lug
  • Number of Holes: 2
  • Barrel Type: Standard
  • Conductor Size: 2/0 AWG
  • Color Code: Olive
  • Die Code: 297
  • Stud Size: 1/2 in
  • Stud Hole Diameter : 0.56 in
  • Outside Diameter : 1.44 in
  • Barrel Length : 1.17 in
  • Pad Width : 1.03 in
  • Overall Length : 4.78 in
  • Hole Spacing : 1-3/4 in
  • Hole Offset : 0.63 in
  • Pad Thickness : 0.20 in
  • Wire Strip Length : 1-3/8 in
  • Barrel Style : Chamfered
  • Tongue Angle : Straight
  • Voltage Rating : 600 VAC to 35 kV
  • pdfCatalog https://econtent.adhq.com/dam/Original/116/IDW_DOCUMENT_baee177515e9a86ae4c40975d084bae2ec98e112269b8829e0d5f285bf54a1e6.pdf
  • pdfSpecification Sheet https://econtent.adhq.com/dam/Original/204/IDW_DOCUMENT_d18d6cb80f09334644a8fe6e50657868ef6de9e4f57b87ceb0bd894d49d4d064.pdf
  • pdfLine Drawing https://econtent.adhq.com/dam/Original/626/IDW_DOCUMENT_94b8ca865d574aae2672f28cecf0cf5df47092d21b06cbdd811dd6dc15d68397.pdf
