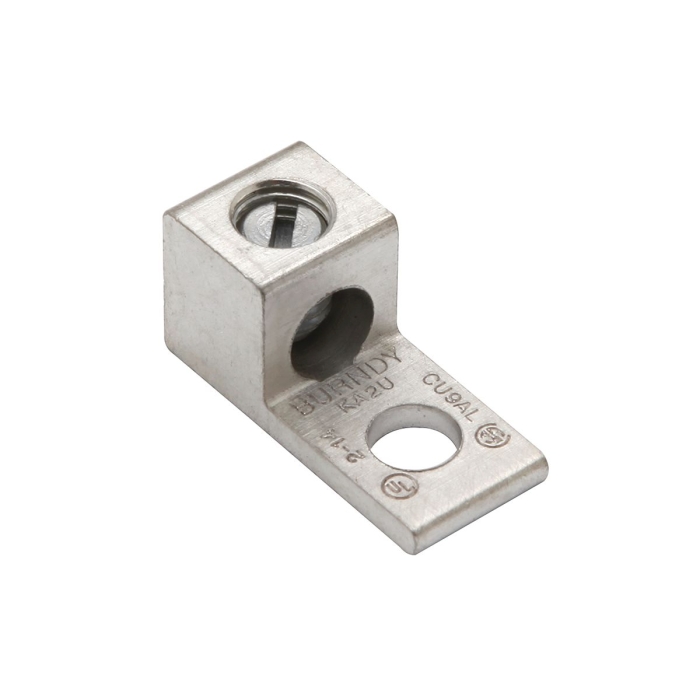

BURNDY® Aluminum Dual Rated Mechanical Lug, 1 Conductor, 8 to 2 AWG, 14 to 2 AWG Conductor, 1 Hole Mount, 1/4 in Stud
Burndy's universal one conductor terminal lug is dual rated for aluminum and copper conductors.
-
Manufacturer: HUBBELL
-
Brand: BURNDY®
-
PN: KA25U
-
CX SKU: 1092704
-
UPC: 78181037019
- Type: Universal Terminal
- Conductor Type: Copper/Aluminum
- Number of Conductors: 1
- Conductor Size: 8 to 2 AWG, 14 to 2 AWG
- Number of Mounting Holes: 1
- Stud Size: 1/4 in
- Stud Hole Diameter: 0.27 in
- Head Style : Slotted
- Pad Length : 0.81 in
- Pad Width : 0.63 in
- Pad Thickness : 0.19 in
- Overall Length : 1.50 in
- Overall Height : 0.92 in
- Voltage Rating : 600 VAC
- Temperature Rating : 194 deg F
- Installation Torque : 50 in-lb
- Material : Aluminum
- Finish : Tin Plated
|
-
Specification Sheet
https://econtent.adhq.com/dam/Original/1001/BURNDY_KA25U_Specification_Sheet.pdf
-
Line Drawing
https://econtent.adhq.com/dam/Original/1002/BURNDY_K2A26U_Line_Drawing.pdf
