BURNDY® YA30L24 | Connexion
BURNDY® YA30L24 1092746

BURNDY®

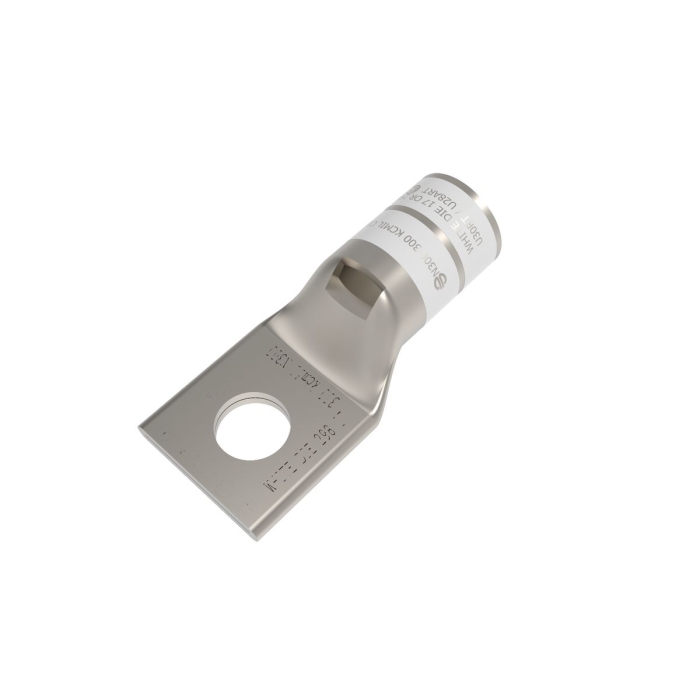

1-Hole Copper Compression Lug

  • loading
  • Manufacturer: HUBBELL
  • Brand Name: BURNDY®
  • PN: YA30L24
  • PN: YA30L24
  • UPC: 78181050489
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

BURNDY® HYLUG™ 1-Hole Copper Compression Lug with Inspection Hole, Standard Barrel, 4 AWG Conductor, 1/4 in Stud, Gray Color Code

  • Manufacturer: HUBBELL
  • Brand: BURNDY®
  • PN: YA30L24
  • CX SKU: 1092746
  • UPC: 78181050489
  • Type: Compression Lug
  • Number of Holes: 1
  • Barrel Type: Standard
  • Inspection Hole: Yes
  • Conductor Size: 4 AWG
  • Color Code: Gray
  • Die Code: 8
  • Stud Size : 1/4 in
  • Stud Hole Diameter : 0.40 in
  • Outside Diameter : 0.81 in
  • Barrel Length : 13/16 in
  • Pad Width : 2.19 in
  • Overall Length : 1.74 in
  • Hole Offset : 0.41 in
  • Pad Thickness : 0.33 in
  • Wire Strip Length : 7/8 in
  • Barrel Style : Chamfered/Skived
  • Tongue Angle : Straight
  • Voltage Rating : 600 VAC to 35 kV
  • pdfLine Drawing https://econtent.adhq.com/dam/Original/525/IDW_DOCUMENT_94defd997fcea2e3288b9b915b6eeda4257aa17921923c5935cf57fc523ee081.pdf
  • pdfSpecification Sheet https://econtent.adhq.com/dam/Original/664/IDW_DOCUMENT_628494873b70f339f6509f746e377fa0d45bbdff49b3846f0210ff18823d7b9d.pdf
  • pdfCatalog https://econtent.adhq.com/dam/Original/664/IDW_DOCUMENT_6c570140a0e6704ca5fc20a21a6dd49e9cf1a1843c5aaf9efa1d88518ea91d0b.pdf
