BURNDY® YAZ27TC38 1092771

BURNDY®

1-Hole Copper Compression Lug

  • loading
  • Manufacturer: HUBBELL
  • Brand Name: BURNDY®
  • PN: YAZ27TC38
  • PN: YAZ27TC38
  • UPC: 78181022363
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

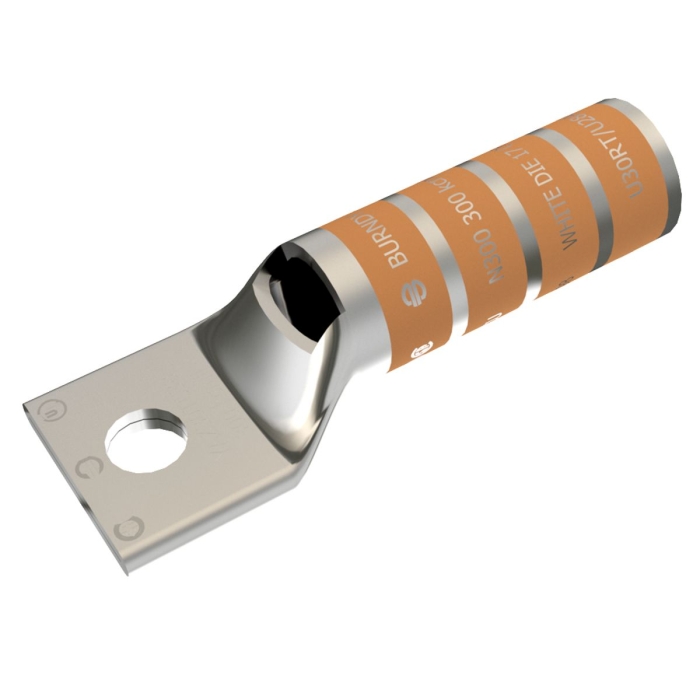

BURNDY® HYLUG™ 1-Hole Copper Compression Lug with Inspection Hole, Long Barrel, 2 AWG Conductor, 5/16 in Stud, Brown Color Code

  • Manufacturer: HUBBELL
  • Brand: BURNDY®
  • PN: YAZ27TC38
  • CX SKU: 1092771
  • UPC: 78181022363
  • Type: Compression Lug
  • Number of Holes: 1
  • Barrel Type: Long
  • Inspection Hole: Yes
  • Conductor Size: 2 AWG
  • Color Code: Brown
  • Die Code: 10
  • Stud Size : 5/16 in
  • Stud Hole Diameter : 0.41 in
  • Outside Diameter : 0.62 in
  • Barrel Length : 1.25 in
  • Pad Width : 0.90 in
  • Overall Length : 2.27 in
  • Hole Offset : 0.41 in
  • Pad Thickness : 0.12 in
  • Wire Strip Length : 1-5/16 in
  • Barrel Style : Chamfered/Skived
  • Tongue Angle : Straight
  • Voltage Rating : 600 VAC to 35 kV
  • pdfLine Drawing https://econtent.adhq.com/dam/Original/594/IDW_DOCUMENT_161365b13bcc7bb815c5ad0c45af4ce8329fb2e837e22a983ae573df9490d6a6.pdf
  • pdfCatalog https://econtent.adhq.com/dam/Original/596/IDW_DOCUMENT_b25c91161d46ec63e159eb9aa22430ac1c92bfbda31f5f18cdd7dea6448170a1.pdf
  • pdfSpecification Sheet https://econtent.adhq.com/dam/Original/597/IDW_DOCUMENT_f95c98009fddfc18feaf276818e0897addb219151abad9812edede6bd32d9795.pdf
