BURNDY® YA2CTC14 | Connexion
BURNDY® YA2CTC14 1092744

BURNDY®

1-Hole Copper Compression Lug

  • loading
  • Manufacturer: HUBBELL
  • Brand Name: BURNDY®
  • PN: YA2CTC14
  • PN: YA2CTC14
  • UPC: 78181004959
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

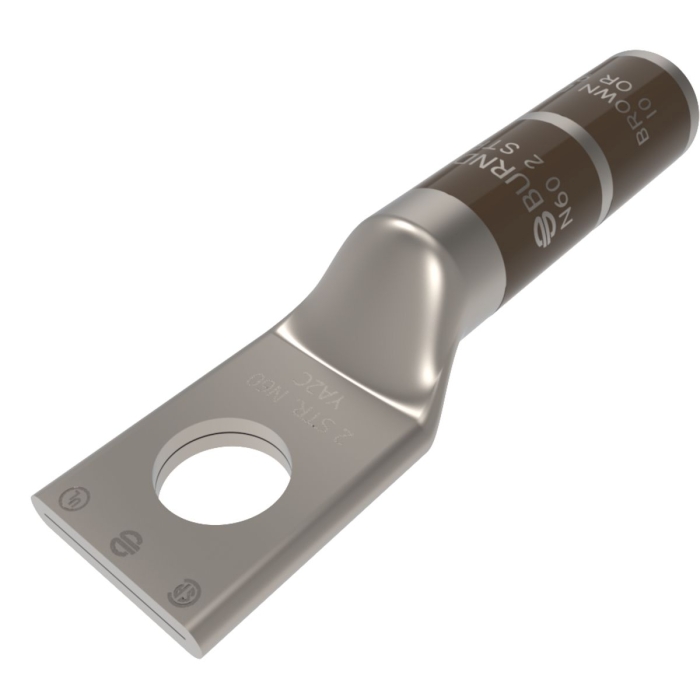

BURNDY® HYLUG™ 1-Hole Copper Compression Lug, Long Barrel, 2 AWG Conductor, 1/4 in Stud, Brown Color Code

  • Manufacturer: HUBBELL
  • Brand: BURNDY®
  • PN: YA2CTC14
  • CX SKU: 1092744
  • UPC: 78181004959
  • Type: Compression Lug
  • Number of Holes: 1
  • Barrel Type: Long
  • Inspection Hole: No
  • Conductor Size: 2 AWG
  • Color Code: Brown
  • Die Code: 10
  • Stud Size : 1/4 in
  • Stud Hole Diameter : 0.27 in
  • Outside Diameter : 0.42 in
  • Barrel Length : 1-1/4 in
  • Pad Width : 0.60 in
  • Overall Length : 2.23 in
  • Hole Offset : 0.31 in
  • Pad Thickness : 0.11 in
  • Wire Strip Length : 1-5/16 in
  • Barrel Style : Chamfered
  • Tongue Angle : Straight
  • Voltage Rating : 600 VAC to 35 kV
  • pdfLine Drawing https://econtent.adhq.com/dam/Original/553/IDW_DOCUMENT_038ced0512cf6d8e790ab10ac8cb5747abf986f221b2b5fc50a94f726aa9a388.pdf
  • pdfCatalog https://econtent.adhq.com/dam/Original/803/IDW_DOCUMENT_2031571126bc3c48ded0e4ddaee6ce2acd367a93c9ee8b411b8da13da75cb825.pdf
  • pdfSpecification Sheet https://econtent.adhq.com/dam/Original/803/IDW_DOCUMENT_2f992670acee16eb7601627ddf4b0ea49ee1d1201b96641a5b7acfd0f977f893.pdf
