BURNDY® YA2CL4BOX | Connexion
BURNDY® YA2CL4BOX 1092743

BURNDY®

1-Hole Copper Compression Lug

  • loading
  • Manufacturer: HUBBELL
  • Brand Name: BURNDY®
  • PN: YA2CL4BOX
  • PN: YA2CL4BOX
  • UPC: 78181055200
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

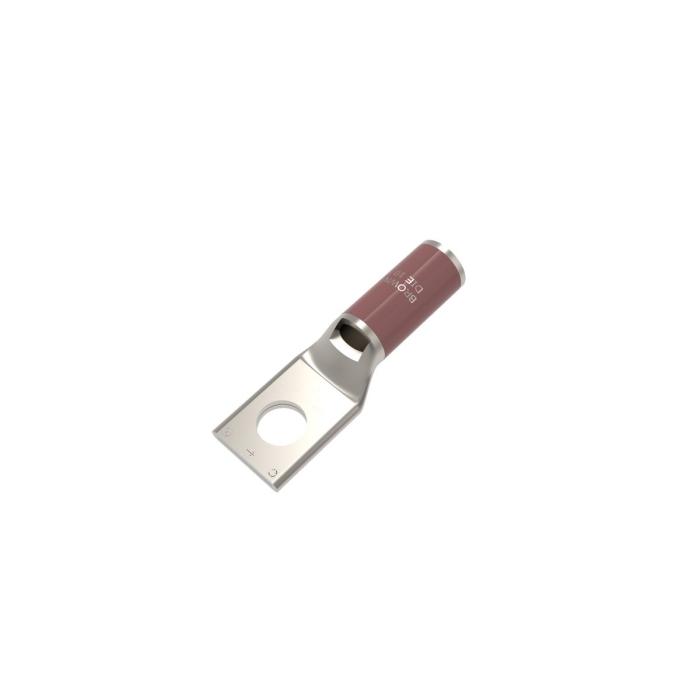

BURNDY® HYLUG™ 1-Hole Copper Compression Lug with Inspection Hole, Standard Barrel, 2 AWG Conductor, 3/8 in Stud, Brown Color Code

Burndy's 1-hole short barrel compression lug is copper, tin plated and is coded for copper conductors.

  • Manufacturer: HUBBELL
  • Brand: BURNDY®
  • PN: YA2CL4BOX
  • CX SKU: 1092743
  • UPC: 78181055200
  • Type: Compression Lug
  • Number of Holes: 1
  • Barrel Type: Standard
  • Inspection Hole: Yes
  • Conductor Size: 2 AWG
  • Color Code: Brown
  • Die Code: 10
  • Stud Size : 3/8 in
  • Stud Hole Diameter : 0.39 in
  • Outside Diameter : 0.42 in
  • Barrel Length : 0.88 in
  • Pad Width : 0.61 in
  • Overall Length : 2.06 in
  • Hole Offset : 0.41 in
  • Pad Thickness : 0.33 in
  • Wire Strip Length : 15/16 in
  • Barrel Style : Chamfered/Skived
  • Tongue Angle : Straight
  • Voltage Rating : 600 VAC to 35 kV
  • pdfLine Drawing https://econtent.adhq.com/dam/Original/525/IDW_DOCUMENT_94defd997fcea2e3288b9b915b6eeda4257aa17921923c5935cf57fc523ee081.pdf
  • pdfSpecification Sheet https://econtent.adhq.com/dam/Original/654/IDW_DOCUMENT_435228f9d35f97da78b1c3e675fd5220852ecb2fff483f3f70ea6132a9190298.pdf
  • pdfCatalog https://econtent.adhq.com/dam/Original/665/IDW_DOCUMENT_a23dcc54c153c86bb1bf0b6d4af6081a2a008627eb0f93adb2e44898bc4053da.pdf
