BURNDY® YA3CTC14 | Connexion
BURNDY® YA3CTC14 1092757

BURNDY®

1-Hole Copper Compression Lug

  • loading
  • Manufacturer: HUBBELL
  • Brand Name: BURNDY®
  • PN: YA3CTC14
  • PN: YA3CTC14
  • UPC: 78181001961
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

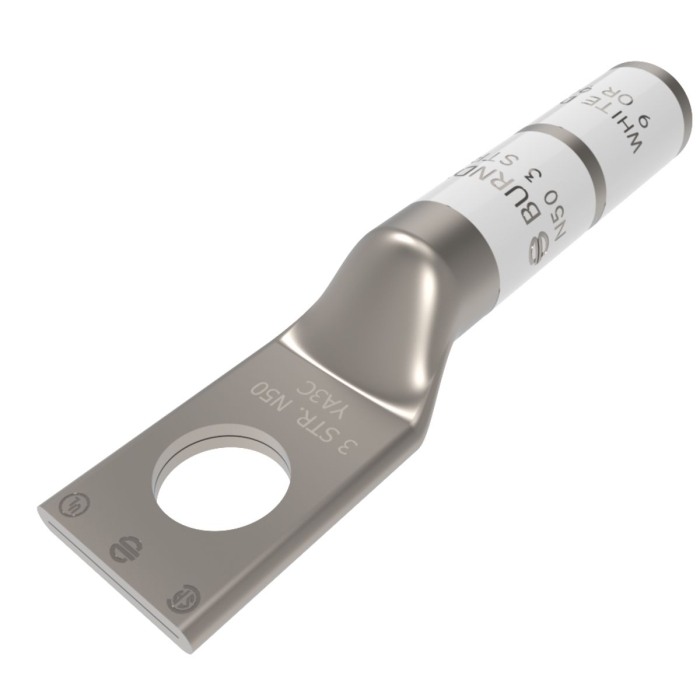

BURNDY® HYLUG™ 1-Hole Copper Compression Lug, Long Barrel, 6 AWG Conductor, 3/8 in Stud, Blue Color Code

  • Manufacturer: HUBBELL
  • Brand: BURNDY®
  • PN: YA3CTC14
  • CX SKU: 1092757
  • UPC: 78181001961
  • Type: Compression Lug
  • Number of Holes: 1
  • Barrel Type: Long
  • Inspection Hole: No
  • Conductor Size: 6 AWG
  • Color Code: Blue
  • Die Code: 7
  • Stud Size : 3/8 in
  • Stud Hole Diameter : 0.27 in
  • Outside Diameter : 0.38 in
  • Barrel Length : 1-1/8 in
  • Pad Width : 0.58 in
  • Overall Length : 2.13 in
  • Hole Offset : 0.31 in
  • Pad Thickness : 0.06 in
  • Wire Strip Length : 1-3/16 in
  • Barrel Style : Chamfered
  • Tongue Angle : Straight
  • Voltage Rating : 600 VAC to 35 kV
  • pdfLine Drawing https://econtent.adhq.com/dam/Original/725/IDW_DOCUMENT_a972fcf345aabbd4dd6d3fd83d28ecf0762d706ed8e9e0915b896f78b6805f9f.pdf
  • pdfSpecification Sheet https://econtent.adhq.com/dam/Original/783/IDW_DOCUMENT_7fb9c2e051ff02f14f597e0839dca7aa47f17cb09fc267f7d20b7b17912dcabc.pdf
  • pdfCatalog https://econtent.adhq.com/dam/Original/785/IDW_DOCUMENT_df97b001f816c198b702360d23169eac19bf654c3b0f1e7bf96b2ea5929aef31.pdf
