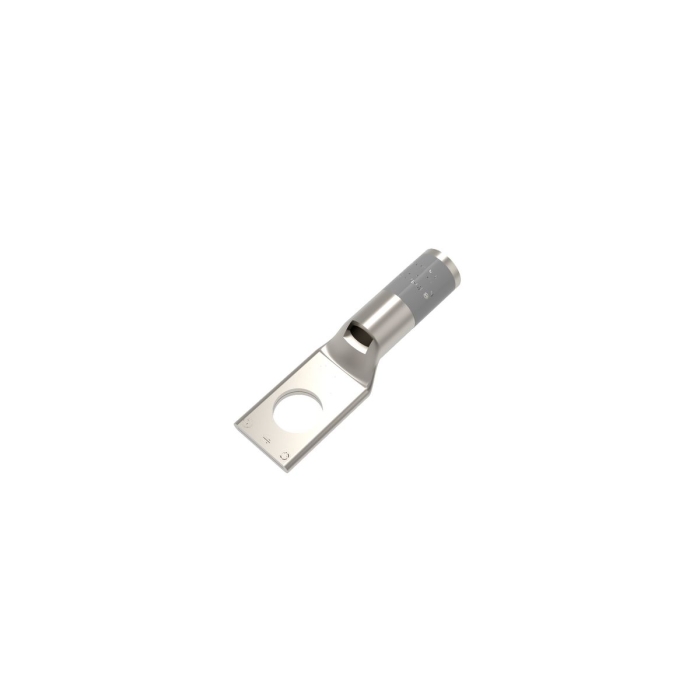

BURNDY® HYLUG™ 1-Hole Copper Compression Lug with Inspection Hole, Standard Barrel, 4 AWG Conductor, 1/4 in Stud, Gray Color Code
Burndy's 1-hole short barrel compression lug is copper, tin plated and is coded for copper conductors.
-
Manufacturer: HUBBELL
-
Brand: BURNDY®
-
PN: YA4CLBOX
-
CX SKU: 1092759
-
UPC: 78181055225
- Type: Compression Lug
- Number of Holes: 1
- Barrel Type: Standard
- Inspection Hole: Yes
- Conductor Size: 4 AWG
- Color Code: Gray
- Die Code: 8
- Stud Size : 1/4 in
- Stud Hole Diameter : 0.27 in
- Outside Diameter : 0.34 in
- Barrel Length : 13/16 in
- Pad Width : 2.19 in
- Overall Length : 1.74 in
- Hole Offset : 0.31 in
- Pad Thickness : 0.33 in
- Wire Strip Length : 7/8 in
- Barrel Style : Chamfered/Skived
- Tongue Angle : Straight
- Voltage Rating : 600 VAC to 35 kV
|
-
