BURNDY® YAZ6CTC14 | Connexion
BURNDY® YAZ6CTC14 1092779

BURNDY®

1-Hole Copper Compression Lug

  • loading
  • Manufacturer: HUBBELL
  • Brand Name: BURNDY®
  • PN: YAZ6CTC14
  • PN: YAZ6CTC14
  • UPC: 78181023316
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

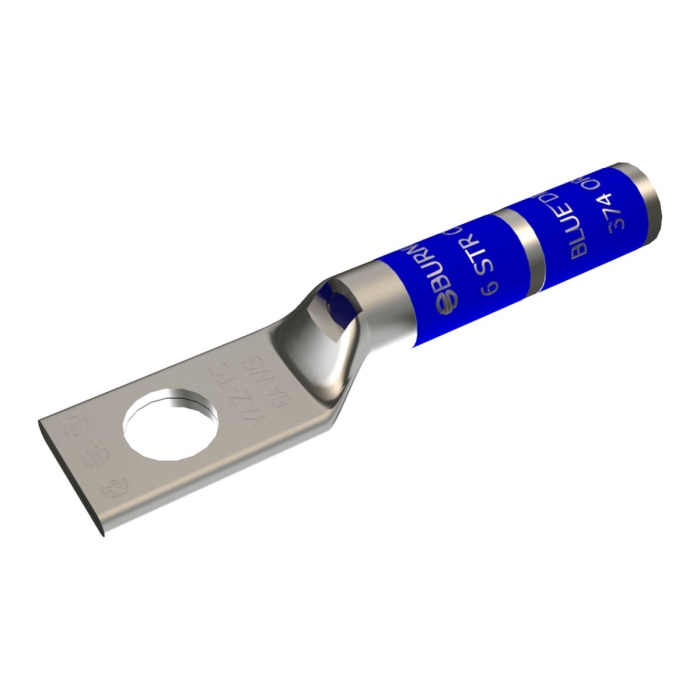

BURNDY® HYLUG™ 1-Hole Copper Compression Lug with Inspection Hole, Long Barrel, 6 AWG Conductor, 1/4 in Stud, Blue Color Code

  • Manufacturer: HUBBELL
  • Brand: BURNDY®
  • PN: YAZ6CTC14
  • CX SKU: 1092779
  • UPC: 78181023316
  • Type: Compression Lug
  • Number of Holes: 1
  • Barrel Type: Long
  • Inspection Hole: Yes
  • Conductor Size: 6 AWG
  • Color Code: Blue
  • Die Code: 7/374
  • Stud Size : 1/4 in
  • Stud Hole Diameter : 0.27 in
  • Outside Diameter : 0.29 in
  • Barrel Length : 1.12 in
  • Pad Width : 0.45 in
  • Overall Length : 2.02 in
  • Hole Offset : 0.31 in
  • Pad Thickness : 0.08 in
  • Wire Strip Length : 1-3/16 in
  • Barrel Style : Chamfered/Skived
  • Tongue Angle : Straight
  • Voltage Rating : 600 VAC to 35 kV
  • pdfCatalog https://econtent.adhq.com/dam/Original/483/IDW_DOCUMENT_8bac3706cf14391bd2193ccebfce162b16e5fcca8098052a3a6e0173f46ca5dd.pdf
  • pdfLine Drawing https://econtent.adhq.com/dam/Original/486/IDW_DOCUMENT_df64044cd4c18fb915e57af6ac7deb5182dd9cb492ed8f244a73adb139b9849c.pdf
  • pdfSpecification Sheet https://econtent.adhq.com/dam/Original/487/IDW_DOCUMENT_fd5a8286817c0dcf9172d8cf1adcee643ea3565f5f26c49acb3005c3f7025808.pdf
