BURNDY® YA6CT4 | Connexion
BURNDY® YA6CT4 1092763

BURNDY®

1-Hole Copper Compression Lug

  • loading
  • Manufacturer: HUBBELL
  • Brand Name: BURNDY®
  • PN: YA6CT4
  • PN: YA6CT4
  • UPC: 78181017306
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

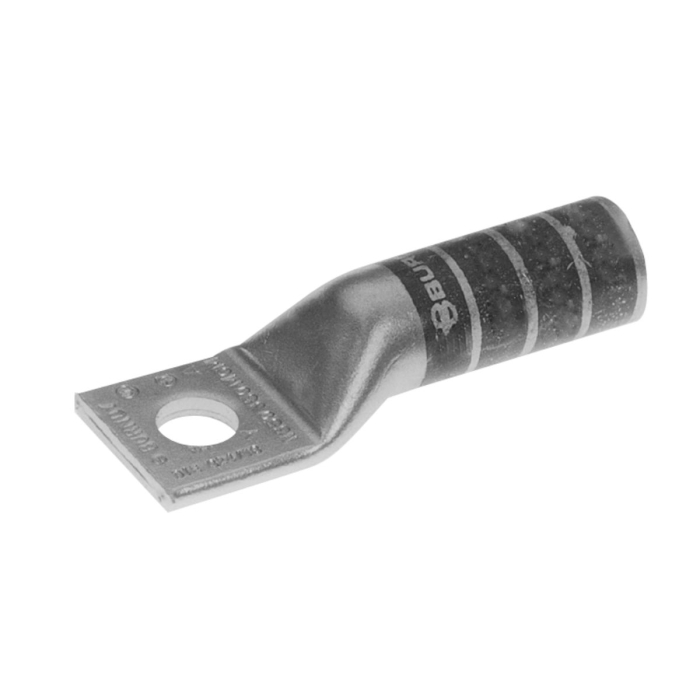

BURNDY® HYLUG™ 1-Hole Copper Compression Lug, Long Barrel, 6 AWG Conductor, 3/8 in Stud, Blue Color Code

  • Manufacturer: HUBBELL
  • Brand: BURNDY®
  • PN: YA6CT4
  • CX SKU: 1092763
  • UPC: 78181017306
  • Type: Compression Lug
  • Number of Holes: 1
  • Barrel Type: Long
  • Conductor Size: 6 AWG
  • Color Code: Blue
  • Die Code: 7
  • Stud Size: 3/8 in
  • Stud Hole Diameter : 0.41 in
  • Outside Diameter : 0.29 in
  • Barrel Length : 1-1/8 in
  • Pad Width : 0.58 in
  • Overall Length : 2.13 in
  • Hole Offset : 0.38 in
  • Pad Thickness : 0.06 in
  • Wire Strip Length : 1-3/16 in
  • Barrel Style : Chamfered
  • Tongue Angle : Straight
  • Voltage Rating : 600 VAC to 35 kV
  • Temperature Rating : 194 deg F
  • pdfLine Drawing https://econtent.adhq.com/dam/Original/627/IDW_DOCUMENT_eced3f4ce7cdb59a47ac437713e31794feafc945d079240e3460502c79680c6e.pdf
  • pdfSpecification Sheet https://econtent.adhq.com/dam/Original/9/IDW_DOCUMENT_2f8abfd789fd3a8da70efc671d3138ae85a7793617018d080a6919266e2683db.pdf
  • pdfCatalog https://econtent.adhq.com/dam/Original/9/IDW_DOCUMENT_60fc6101b046ab92b74722502ab59c3e6e59a787e14555f0f9f1912dbd66d52c.pdf
