BURNDY® YA8CTC10 | Connexion
BURNDY® YA8CTC10 1092765

BURNDY®

1-Hole Copper Compression Lug

  • loading
  • Manufacturer: HUBBELL
  • Brand Name: BURNDY®
  • PN: YA8CTC10
  • PN: YA8CTC10
  • UPC: 78181001907
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

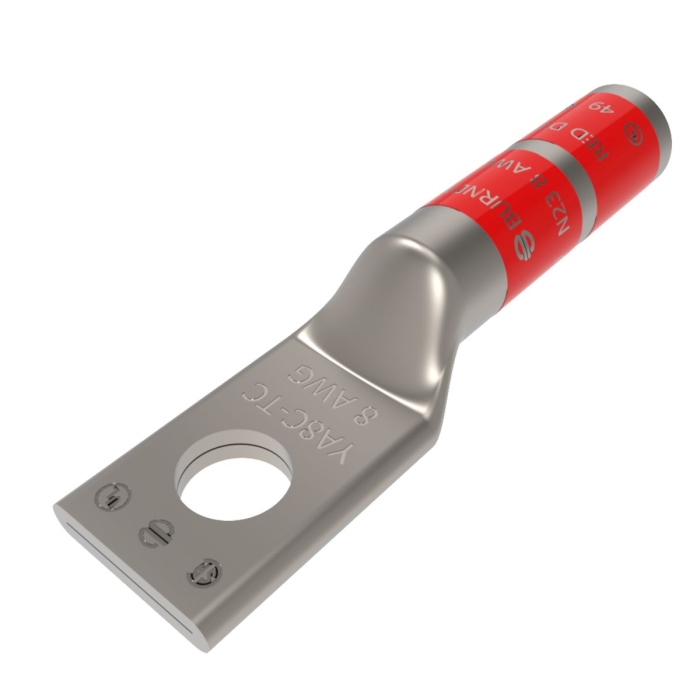

BURNDY® HYLUG™ 1-Hole Copper Compression Lug, Long Barrel, 8 AWG Conductor, #8 to #10 Stud, Red Color Code

  • Manufacturer: HUBBELL
  • Brand: BURNDY®
  • PN: YA8CTC10
  • CX SKU: 1092765
  • UPC: 78181001907
  • Type: Compression Lug
  • Number of Holes: 1
  • Barrel Type: Long
  • Inspection Hole: No
  • Conductor Size: 8 AWG
  • Color Code: Red
  • Die Code: 49
  • Stud Size : #8 to #10
  • Stud Hole Diameter : 0.21 in
  • Outside Diameter : 0.27 in
  • Barrel Length : 13/16 in
  • Pad Width : 0.41 in
  • Overall Length : 1.57 in
  • Hole Offset : 0.25 in
  • Pad Thickness : 0.08 in
  • Wire Strip Length : 7/8 in
  • Barrel Style : Chamfered
  • Tongue Angle : Straight
  • Voltage Rating : 600 VAC to 35 kV
  • pdfLine Drawing https://econtent.adhq.com/dam/Original/673/IDW_DOCUMENT_2d5d0dc1614ba9f4cc5854cbe0a8e4f15642f55a2609f5c9cb9637538ca6288e.pdf
  • pdfSpecification Sheet https://econtent.adhq.com/dam/Original/693/IDW_DOCUMENT_0a2c262b6eb80785dd01008dcfb2b0dd0b713a655703c1445fc2c50625e66db9.pdf
  • pdfCatalog https://econtent.adhq.com/dam/Original/697/IDW_DOCUMENT_ea031d9c0d9654473203826d6268b15fc2425a9df4519bc027b78c0d474d1719.pdf
