BURNDY® YA34A7 | Connexion
BURNDY® YA34A7 1092749

BURNDY®

1-Hole Aluminum Dual Rated Compression Lug

  • loading
  • Manufacturer: HUBBELL
  • Brand Name: BURNDY®
  • PN: YA34A7
  • PN: YA34A7
  • UPC: 78181002352
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

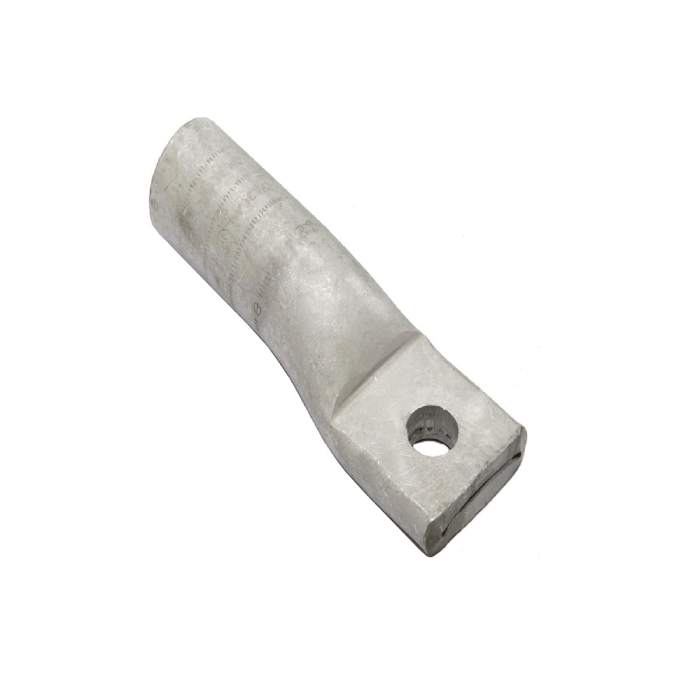

BURNDY® HYLUG™ 1-Hole Aluminum Dual Rated Compression Lug, Standard Barrel, 500 kcmil Conductor, 1/2 in Stud, Pink Color Code

  • Manufacturer: HUBBELL
  • Brand: BURNDY®
  • PN: YA34A7
  • CX SKU: 1092749
  • UPC: 78181002352
  • Type: Compression Lug
  • Number of Holes: 1
  • Barrel Type: Standard
  • Conductor Size: 500 kcmil
  • Color Code: Pink
  • Die Code: 300
  • Stud Size: 1/2 in
  • Stud Hole Diameter : 0.56 in
  • Outside Diameter : 1.32 in
  • Barrel Length : 2.34 in
  • Pad Width : 1.80 in
  • Overall Length : 5.02 in
  • Hole Offset : 0.63 in
  • Pad Thickness : 0.46 in
  • Wire Strip Length : 2-5/8 in
  • Barrel Style : Chamfered
  • Tongue Angle : Straight
  • Voltage Rating : 600 VAC to 35 kV
  • Temperature Rating : 194 deg F
  • pdfInstruction/Installation Manual https://econtent.adhq.com/dam/Original/10000/BURNDY_YA34A7_Manual.pdf
  • pdfSpecification Sheet https://econtent.adhq.com/dam/Original/316/IDW_DOCUMENT_d4a06d08d70a8ff24476137aca29e89f501060da2168df8b1cb70d4251b11efb.pdf
  • pdfLine Drawing https://econtent.adhq.com/dam/Original/99/IDW_DOCUMENT_47aeb43c144e420ae249eb221bfb3bc9efb670b24e51237eace08c78e95f2f36.pdf
