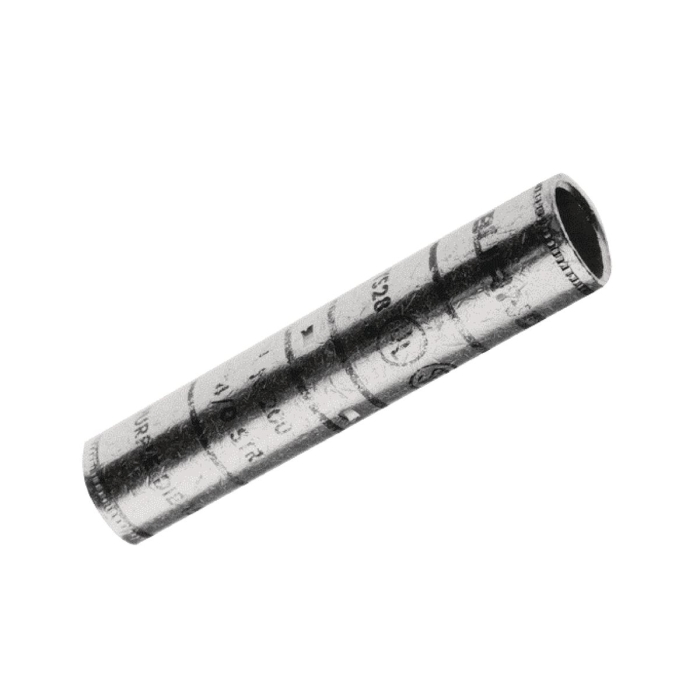

BURNDY® HYLINK™ Copper Compression Splice, Long Barrel, 4/0 AWG Conductor, Purple Color Code
Burndy's compression buttsplice is manufactured from high connectivity wrought iron; provides low resistance. This connector is electro-plated for greater tensile strength and cable support.
-
Manufacturer: HUBBELL
-
Brand: BURNDY®
-
PN: YS28
-
CX SKU: 1092791
-
UPC: 78181050780
- Type: Compression Splice
- Barrel Type: Long
- Conductor Size: 4/0 AWG
- Color Code: Purple
- Die Code: 15
- Outside Diameter: 0.69 in
- Overall Length: 3.57 in
- Barrel Length : 1.58 in
- Wire Strip Length : 1-11/16 in
- Barrel Style : Chamfered
- Voltage Rating : 600 VAC to 35 kV
- Temperature Rating : 194 deg F
- Material : Copper
- Finish : Tin Plated
|
-
