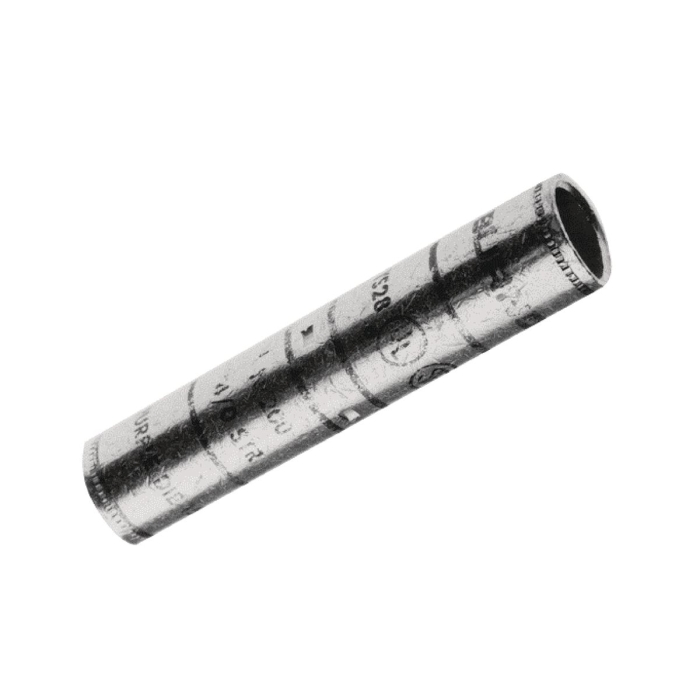

BURNDY® HYLINK™ Copper Compression Splice, Long Barrel, 2/0 AWG Conductor, Black Color Code
Burndy's compression buttsplice is manufactured from high connectivity wrought iron; provides low resistance. This connector is electro-plated for greater tensile strength and cable support.
-
Manufacturer: HUBBELL
-
Brand: BURNDY®
-
PN: YS26
-
CX SKU: 1092787
-
UPC: 78181050760
- Type: Compression Splice
- Barrel Type: Long
- Conductor Size: 2/0 AWG
- Color Code: Black
- Die Code: 13
- Outside Diameter: 0.56 in
- Overall Length: 3.3 in
- Barrel Length : 1.45 in
- Wire Strip Length : 1-9/19 in
- Barrel Style : Chamfered
- Voltage Rating : 600 VAC to 35 kV
- Temperature Rating : 194 deg F
- Material : Copper
- Finish : Tin Plated
|
-
