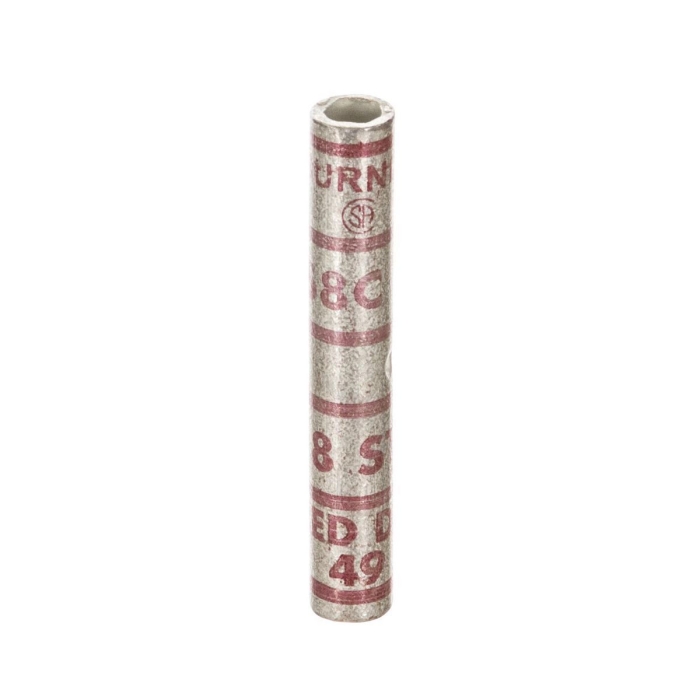

BURNDY® HYLINK™ Copper Compression Splice, Long Barrel, 8 AWG Conductor, Red Color Code
Burndy's compression buttsplice is manufactured from high connectivity wrought iron; provides low resistance. This connector is electro-plated for greater tensile strength and cable support.
-
Manufacturer: HUBBELL
-
Brand: BURNDY®
-
PN: YS8C
-
CX SKU: 1092805
-
UPC: 78181050741
- Type: Compression Splice
- Barrel Type: Long
- Conductor Size: 8 AWG
- Color Code: Red
- Die Code: 49
- Outside Diameter: 0.27 in
- Overall Length: 1-3/4 in
- Barrel Length : 0.78 in
- Wire Strip Length : 7/8 in
- Barrel Style : Chamfered
- Voltage Rating : 600 VAC to 35 kV
- Temperature Rating : 194 deg F
- Material : Copper
- Finish : Tin Plated
|
-
