BURNDY® YA29A1 | Connexion
BURNDY® YA29A1 1092741

BURNDY®

1-Hole Aluminum Dual Rated Compression Lug

  • loading
  • Manufacturer: HUBBELL
  • Brand Name: BURNDY®
  • PN: YA29A1
  • PN: YA29A1
  • UPC: 78181075510
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

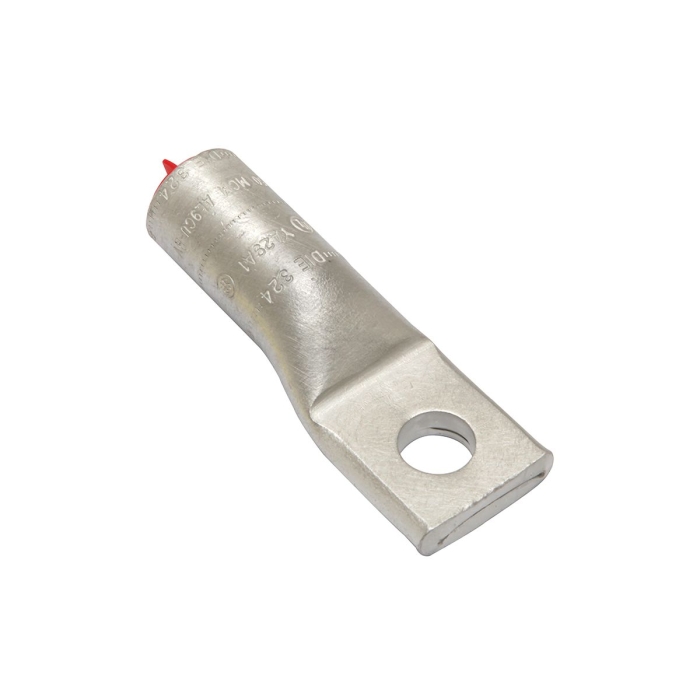

BURNDY® HYLUG™ 1-Hole Aluminum Dual Rated Compression Lug, Standard Barrel, 250 kcmil Conductor, 1/2 in Stud, Red Color Code

  • Manufacturer: HUBBELL
  • Brand: BURNDY®
  • PN: YA29A1
  • CX SKU: 1092741
  • UPC: 78181075510
  • Type: Compression Lug
  • Number of Holes: 1
  • Barrel Type: Standard
  • Conductor Size: 250 kcmil
  • Color Code: Red
  • Die Code: 324
  • Stud Size: 1/2 in
  • Stud Hole Diameter : 0.56 in
  • Outside Diameter : 0.92 in
  • Barrel Length : 1.45 in
  • Pad Width : 1.26 in
  • Overall Length : 3.53 in
  • Hole Offset : 0.63 in
  • Pad Thickness : 0.33 in
  • Wire Strip Length : 1-5/8 in
  • Barrel Style : Chamfered
  • Tongue Angle : Straight
  • Voltage Rating : 600 VAC to 35 kV
  • Temperature Rating : 194 deg F
  • pdfLine Drawing https://econtent.adhq.com/dam/Original/626/IDW_DOCUMENT_94b8ca865d574aae2672f28cecf0cf5df47092d21b06cbdd811dd6dc15d68397.pdf
  • pdfSpecification Sheet https://econtent.adhq.com/dam/Original/695/IDW_DOCUMENT_6f9afffced84907399b2ea07003d913301205af95673230751ba48ebe4f02142.pdf
  • pdfCatalog https://econtent.adhq.com/dam/Original/697/IDW_DOCUMENT_e77ab9342df1870c23fdb42a460246095a7719b3ea381123ba0e0c4ce9b4a02e.pdf
