BURNDY® YA27A1 | Connexion
BURNDY® YA27A1 1092733

BURNDY®

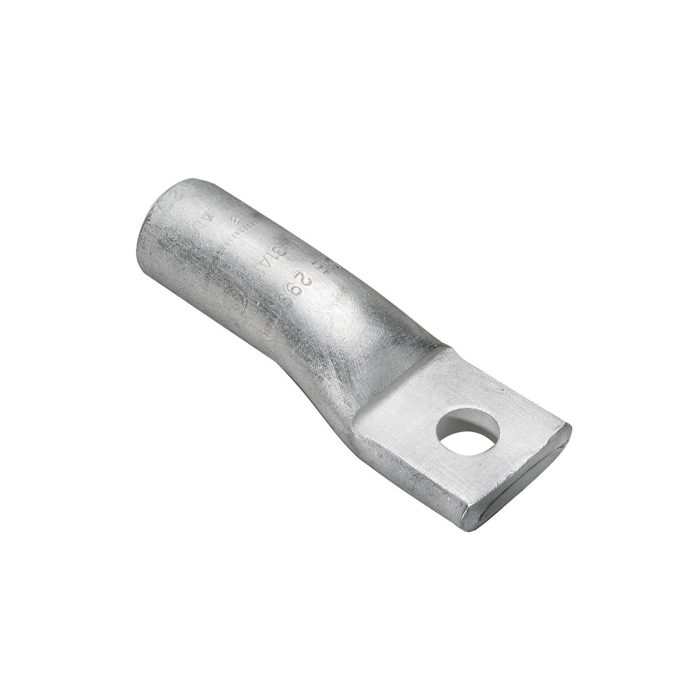

1-Hole Aluminum Dual Rated Compression Lug

  • loading
  • Manufacturer: HUBBELL
  • Brand Name: BURNDY®
  • PN: YA27A1
  • PN: YA27A1
  • UPC: 78181075375
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

BURNDY® HYLUG™ 1-Hole Aluminum Dual Rated Compression Lug, Standard Barrel, 3/0 AWG Conductor, 3/8 in Stud, Ruby Color Code

  • Manufacturer: HUBBELL
  • Brand: BURNDY®
  • PN: YA27A1
  • CX SKU: 1092733
  • UPC: 78181075375
  • Type: Compression Lug
  • Number of Holes: 1
  • Barrel Type: Standard
  • Conductor Size: 3/0 AWG
  • Color Code: Ruby
  • Die Code: 467
  • Stud Size: 3/8 in
  • Stud Hole Diameter : 0.44 in
  • Outside Diameter : 0.76 in
  • Barrel Length : 1.11 in
  • Pad Width : 0.73 in
  • Overall Length : 2.88 in
  • Hole Offset : 0.44 in
  • Pad Thickness : 0.26 in
  • Wire Strip Length : 1-1/2 in
  • Barrel Style : Chamfered
  • Tongue Angle : Straight
  • Voltage Rating : 600 VAC to 35 kV
  • Temperature Rating : 194 deg F
  • pdfLine Drawing https://econtent.adhq.com/dam/Original/626/IDW_DOCUMENT_94b8ca865d574aae2672f28cecf0cf5df47092d21b06cbdd811dd6dc15d68397.pdf
  • pdfSpecification Sheet https://econtent.adhq.com/dam/Original/667/IDW_DOCUMENT_f2dec75df083a698c8e4153cc5fe794f32c67231c70290c02f0e3476c1641d0e.pdf
  • pdfCatalog https://econtent.adhq.com/dam/Original/667/IDW_DOCUMENT_f4c0e7c93336658b40aa3b67d47270f84f8faa634689ab5fa0d43eef4e967d2f.pdf
