BURNDY® YA26A1 | Connexion
BURNDY® YA26A1 1092727

BURNDY®

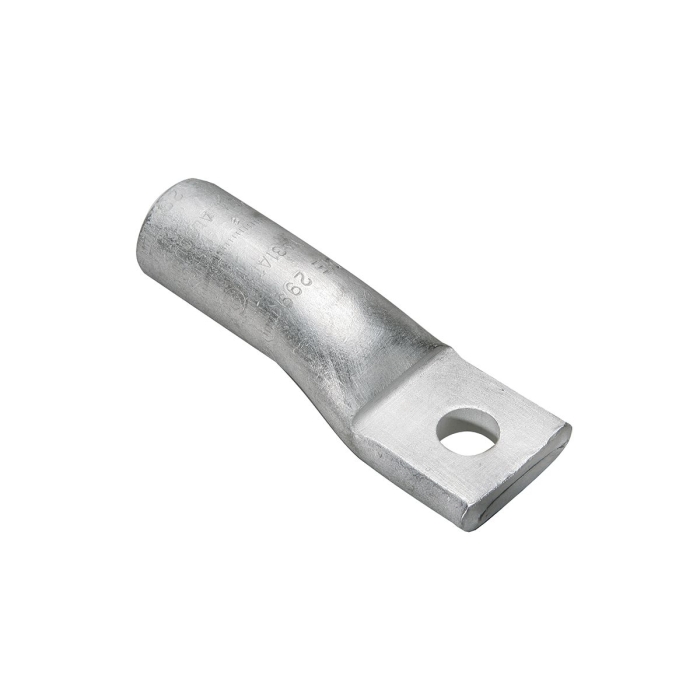

1-Hole Aluminum Dual Rated Compression Lug

  • loading
  • Manufacturer: HUBBELL
  • Brand Name: BURNDY®
  • PN: YA26A1
  • PN: YA26A1
  • UPC: 78181075370
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

BURNDY® HYLUG™ 1-Hole Aluminum Dual Rated Compression Lug, Standard Barrel, 2/0 AWG Conductor, 1/2 in Stud, Olive Color Code

  • Manufacturer: HUBBELL
  • Brand: BURNDY®
  • PN: YA26A1
  • CX SKU: 1092727
  • UPC: 78181075370
  • Type: Compression Lug
  • Number of Holes: 1
  • Barrel Type: Standard
  • Conductor Size: 2/0 AWG
  • Color Code: Olive
  • Die Code: 297
  • Stud Size: 1/2 in
  • Stud Hole Diameter : 0.56 in
  • Outside Diameter : 0.67 in
  • Barrel Length : 1.17 in
  • Pad Width : 1.03 in
  • Overall Length : 3.03 in
  • Hole Offset : 0.20 in
  • Pad Thickness : 0.20 in
  • Wire Strip Length : 1-3/8 in
  • Barrel Style : Chamfered
  • Tongue Angle : Straight
  • Voltage Rating : 600 VAC to 35 kV
  • Temperature Rating : 194 deg F
  • pdfSpecification Sheet https://econtent.adhq.com/dam/Original/57/IDW_DOCUMENT_621c7d3019479fa62dd52bd64cc5b63905ec5dc64402078ca95bc4005b687db0.pdf
  • pdfLine Drawing https://econtent.adhq.com/dam/Original/626/IDW_DOCUMENT_94b8ca865d574aae2672f28cecf0cf5df47092d21b06cbdd811dd6dc15d68397.pdf
  • pdfCatalog https://econtent.adhq.com/dam/Original/76/IDW_DOCUMENT_2c4dcfcf69b07b68afb5da8dd7a569e1869374512281fc1ff17e1a13103f96a5.pdf
