BURNDY® YA26A6 | Connexion
BURNDY® YA26A6 1092729

BURNDY®

1-Hole Aluminum Dual Rated Compression Lug

  • loading
  • Manufacturer: HUBBELL
  • Brand Name: BURNDY®
  • PN: YA26A6
  • PN: YA26A6
  • UPC: 78181075352
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

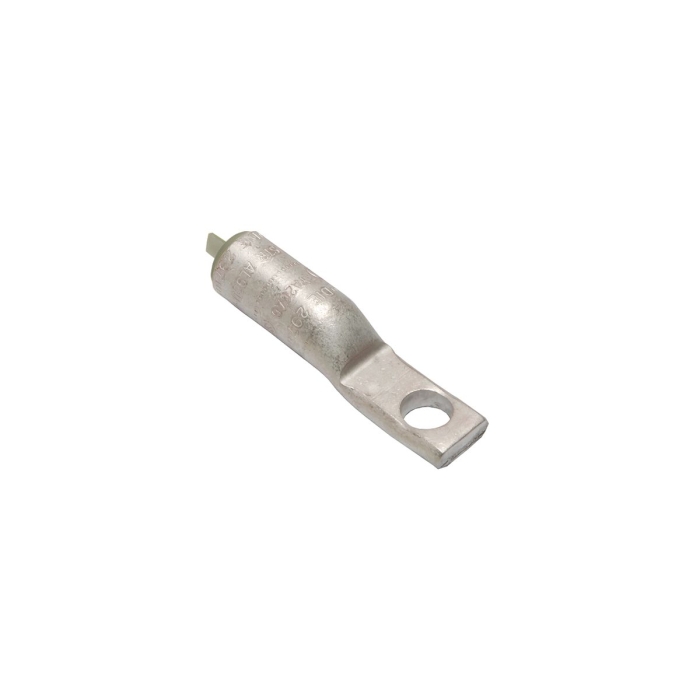

BURNDY® HYLUG™ 1-Hole Aluminum Dual Rated Compression Lug, Standard Barrel, 2/0 AWG Conductor, 3/8 in Stud, Olive Color Code

  • Manufacturer: HUBBELL
  • Brand: BURNDY®
  • PN: YA26A6
  • CX SKU: 1092729
  • UPC: 78181075352
  • Type: Compression Lug
  • Number of Holes: 1
  • Barrel Type: Standard
  • Conductor Size: 2/0 AWG
  • Color Code: Olive
  • Die Code: 297
  • Stud Size: 3/8 in
  • Stud Hole Diameter : 0.44 in
  • Outside Diameter : 0.67 in
  • Barrel Length : 1.11 in
  • Pad Width : 0.76 in
  • Overall Length : 2.79 in
  • Hole Offset : 0.25 in
  • Pad Thickness : 0.24 in
  • Wire Strip Length : 1-3/8 in
  • Barrel Style : Chamfered
  • Tongue Angle : Straight
  • Voltage Rating : 600 VAC to 35 kV
  • Temperature Rating : 194 deg F
  • pdfSpecification Sheet https://econtent.adhq.com/dam/Original/107/IDW_DOCUMENT_e04c93a0cfd275320abf02470a66278f42f4c90892d3769ea65e7a957026f305.pdf
  • pdfCatalog https://econtent.adhq.com/dam/Original/269/IDW_DOCUMENT_22d3002cd67e61c9620989db30cb1040430fec98ace475ab0f3704f39fb5257f.pdf
  • pdfLine Drawing https://econtent.adhq.com/dam/Original/626/IDW_DOCUMENT_94b8ca865d574aae2672f28cecf0cf5df47092d21b06cbdd811dd6dc15d68397.pdf
