BURNDY® YA25A3 | Connexion
BURNDY® YA25A3 1092724

BURNDY®

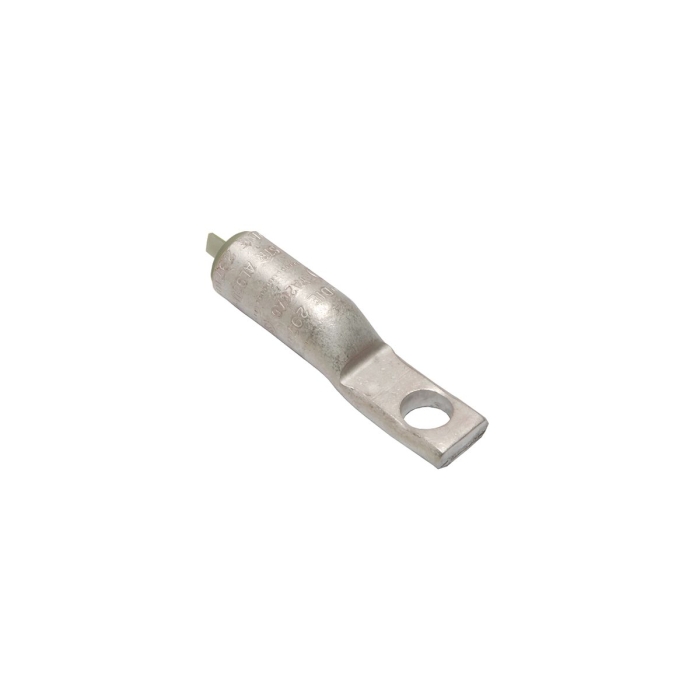

1-Hole Aluminum Dual Rated Compression Lug

  • loading
  • Manufacturer: HUBBELL
  • Brand Name: BURNDY®
  • PN: YA25A3
  • PN: YA25A3
  • UPC: 78181075310
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

BURNDY® HYLUG™ 1-Hole Aluminum Dual Rated Compression Lug, Standard Barrel, 1/0 AWG Conductor, 3/8 in Stud, Tan Color Code

  • Manufacturer: HUBBELL
  • Brand: BURNDY®
  • PN: YA25A3
  • CX SKU: 1092724
  • UPC: 78181075310
  • Type: Compression Lug
  • Number of Holes: 1
  • Barrel Type: Standard
  • Conductor Size: 1/0 AWG
  • Color Code: Tan
  • Die Code: 296
  • Stud Size: 3/8 in
  • Stud Hole Diameter : 0.44 in
  • Outside Diameter : 0.60 in
  • Barrel Length : 1.05 in
  • Pad Width : 0.82 in
  • Overall Length : 2.67 in
  • Hole Offset : 0.63 in
  • Pad Thickness : 0.21 in
  • Wire Strip Length : 1-1/16 in
  • Barrel Style : Chamfered
  • Tongue Angle : Straight
  • Voltage Rating : 600 VAC to 35 kV
  • Temperature Rating : 194 deg F
  • pdfLine Drawing https://econtent.adhq.com/dam/Original/626/IDW_DOCUMENT_94b8ca865d574aae2672f28cecf0cf5df47092d21b06cbdd811dd6dc15d68397.pdf
  • pdfSpecification Sheet https://econtent.adhq.com/dam/Original/683/IDW_DOCUMENT_26b70f92eedb39f4ce038684e02856418fd4d85a478c766d8b0bf0995c792899.pdf
  • pdfCatalog https://econtent.adhq.com/dam/Original/685/IDW_DOCUMENT_a6447f1fcd182050d565709c802d15458275a363e0cbb0b55b819c323414aaf7.pdf
