Leviton® 8300-SGI | Connexion

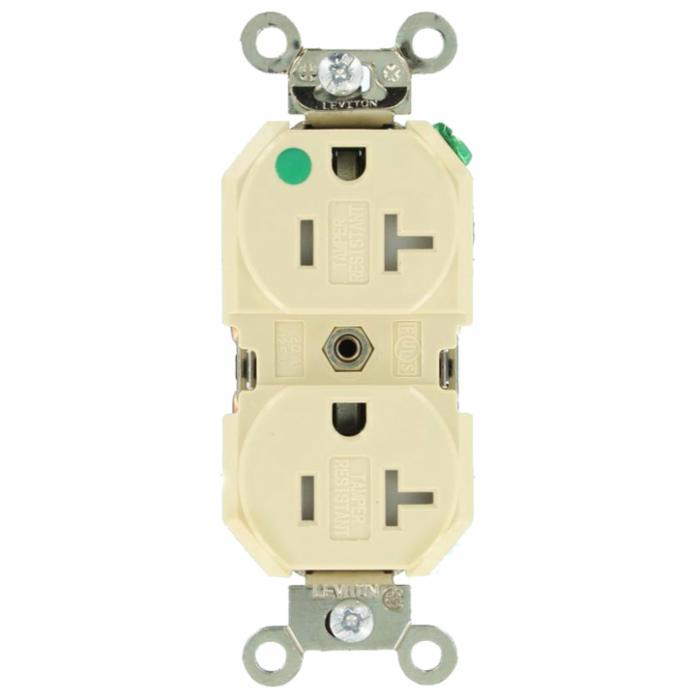

Leviton® 8300-SGI 226469

Leviton®

Extra Heavy-Duty Hospital Grade Tamper-Resistant Duplex Receptacle

  • loading
  • Manufacturer: Leviton Manufacturing
  • Brand Name: Leviton®
  • PN: 8300-SGI
  • PN: 8300-SGI
  • UPC: 078477057186
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

Leviton® Straight Blade Duplex Receptacle, Tamper-Resistant, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wire, NEMA 5-20R, Extra Heavy Duty Hospital Grade, -40 to 60 deg C, Back and Side Wired Terminal, Thermoplastic, Ivory, 4.06 in H x 1.51 in W x 1.23 in D

All Leviton Hospital Grade Receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high-abuse tolerance, including health care facilities, manufacturing plants and schools.
  • Manufacturer: Leviton Manufacturing
  • Brand: Leviton®
  • PN: 8300-SGI
  • CX SKU: 226469
  • UPC: 078477057186
  • Type: Straight Blade Receptacle
  • Style: Traditional Duplex
  • Grade: Extra Heavy-Duty Hospital
  • NEMA Rating: 5-20R
  • Voltage Rating: 125 VAC
  • Amperage Rating: 20 A
  • Horsepower: 1 hp
  • Number of Wires : 3
  • Number of Poles : 2
  • Temperature Rating : -40 to 60 deg C
  • Terminal Type : Back and Side Wired
  • Material : Thermoplastic
  • Color : Ivory
  • Dimensions : 4.06 in H x 1.51 in W x 1.23 in D
