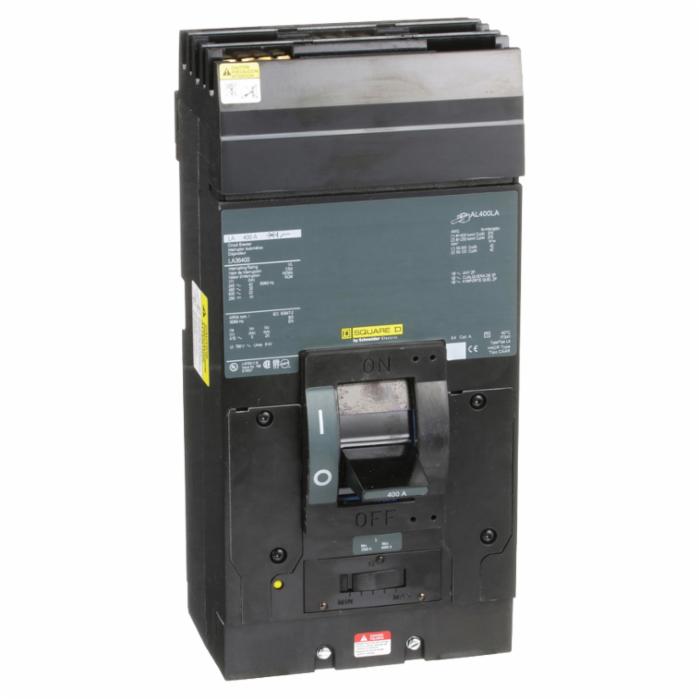

Square D™ Molded Case Circuit Breaker, L-Frame, 3 Pole, 400 A, 600 VAC, 22 kA, Thermal Magnetic Trip, 2000 A Hold, 4000 A Trip, I-Line® Lug Connection, 1 AWG to 600 MCM/1 AWG to 250 MCM Al/Cu Wire, I-Line Mount, 11 in H x 6 in W x 5.84 in D
- I-Line Molded case circuit breaker provides overload and short circuit protection.
- Voltage rating of 600 VAC/250 VDC.
- Circuit breaker is used on I-line panel boards/switchboard and features ground fault protecting.
- Long time/instantaneous functionality.Circuit breaker is UL listed, IEC rated and CSA certified.
-
Manufacturer: Schneider Electric
-
Brand: Square D™
-
PN: LA36400
-
CX SKU: 1028176
-
UPC: 785901426325
- Type: Molded Case Circuit Breaker
- Frame: L
- Number of Poles: 3
- Amperage Rating: 400 A
- Voltage Rating: 600 VAC/250 VDC
- Interrupt Rating: 22 kA
- Trip Type: Thermal Magnetic
- Trip Range : 2000 A Hold, 4000 A Trip
- Connection Type : I-Line® Lug
- Wire Size : 1 AWG to 600 MCM/1 AWG to 250 MCM Al/Cu
- Mounting Type : I-Line
- Dimensions : 11 in H x 6 in W x 5.84 in D
|
