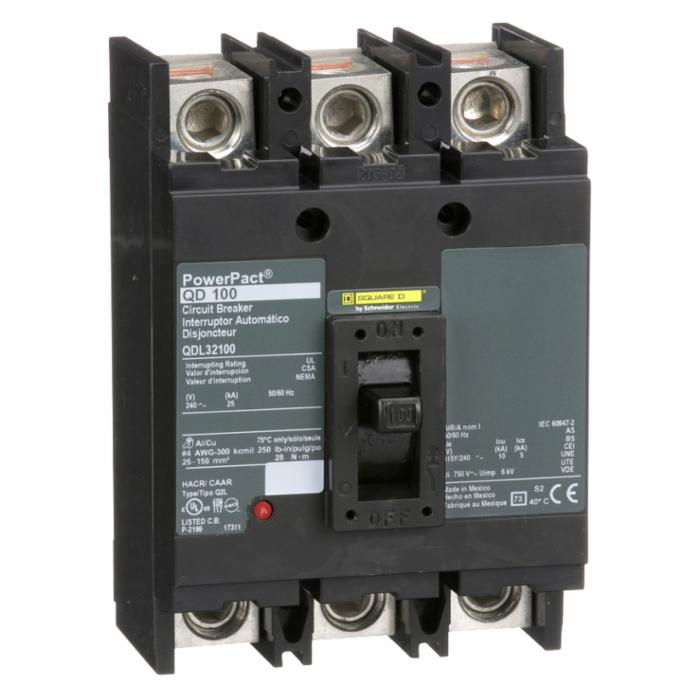

Square D™ Molded Case Circuit Breaker, Q-Frame, PowerPact™ Series, 3 Pole, 100 A, 240 VAC, 25 kA, Thermal Magnetic Trip, 1200 A Hold, 2400 A Trip, Line/Load Lug Connection, 4 AWG to 300 MCM Al/Cu Wire, Unit Mount, 6.47 in H x 4.5 in W x 3.93 in D
- Available from 75-250A at up to 240 Vac
- Field-installable handle padlock attachment available for ON or OFF position and may be used with available mechanical interlocks
- UL 489 Listed, CSA, ANCE, IEC certified for world wide applications
-
Manufacturer: Schneider Electric
-
Brand: Square D™
-
PN: QDL32100
-
CX SKU: 853955
-
UPC: 785901662402
- Type: Molded Case Circuit Breaker
- Series: PowerPact™
- Frame: Q
- Number of Poles: 3
- Amperage Rating: 100 A
- Voltage Rating: 240 VAC
- Interrupt Rating: 25 kA
- Trip Type : Thermal Magnetic
- Trip Range : 1200 A Hold, 2400 A Trip
- Connection Type : Line/Load Lug
- Wire Size : 4 AWG to 300 MCM Al/Cu
- Mounting Type : Unit
- Dimensions : 6.47 in H x 4.5 in W x 3.93 in D
|
