Square D™

Square D™ LJA36600U31X

  • loading
  • Manufacturer: Schneider Electric
  • Brand Name: Square D™
  • PN: LJA36600U31X
  • PN: LJA36600U31X
  • UPC: 785901404712
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

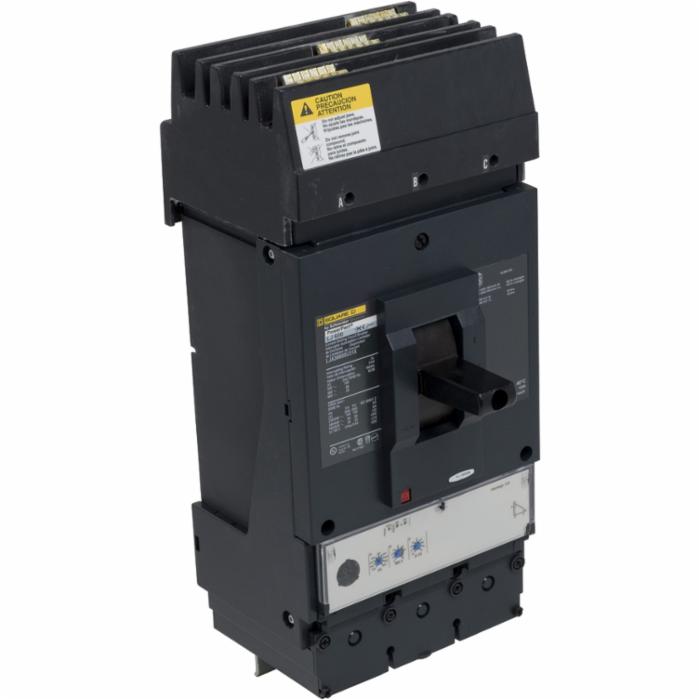

Square D™ Molded Case Circuit Breaker, L-Frame, PowerPact™ Series, 3 Pole, 600 A, 600 VAC, 25 kA, Electronic Standard Micrologic 3.3 LI Trip, Line/Load Lug Connection, 3/0 AWG to 500 MCM Al/Cu Wire, I-Line Mount, 14.7 in H x 5.94 in W x 6.61 in D

  • With factory sealed electronic trip units suitable for reverse connection
  • 95% at 55 deg C relative humidity
  • Standard interrupting capacity, I-Line™ style plug-in, can used for 2P applications
  • Complete with non-interchangeable micrologic standard 3.3 trip
  • 95 to 55 deg C relative humidity
  • Manufacturer: Schneider Electric
  • Brand: Square D™
  • PN: LJA36600U31X
  • CX SKU: 1020547
  • UPC: 785901404712
  • Type : Molded Case Circuit Breaker
  • Series : PowerPact™
  • Frame : L
  • Number of Poles : 3
  • Amperage Rating : 600 A
  • Voltage Rating : 600 VAC
  • Interrupt Rating : 25 kA
  • Trip Type : Electronic Standard Micrologic 3.3 LI
  • Connection Type : Line/Load Lug
  • Wire Size : 3/0 AWG to 500 MCM Al/Cu
  • Mounting Type : I-Line
  • Dimensions : 14.7 in H x 5.94 in W x 6.61 in D
