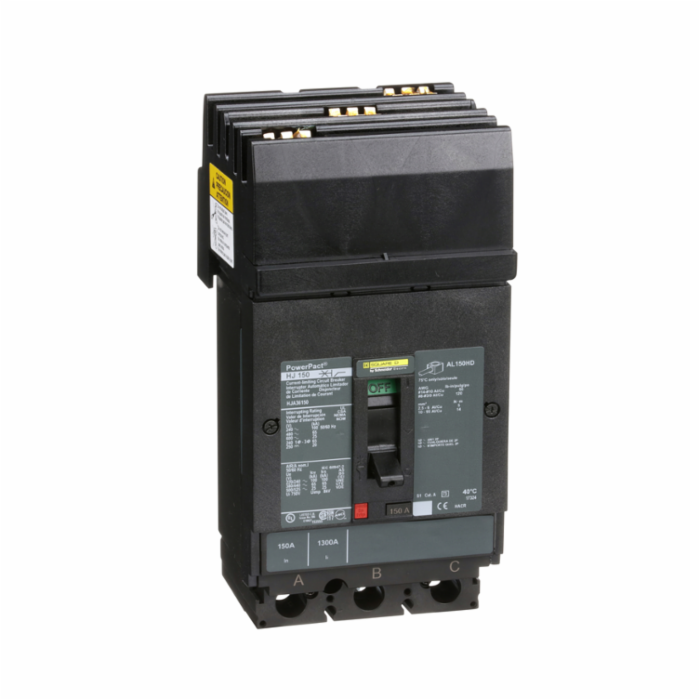

Square D™ Molded Case Circuit Breaker, H-Frame, PowerPact™ Series, 3 Pole, 150 A, 600 VAC, 25 kA, Thermal Magnetic Trip, 900 A Hold, 1700 A Trip, I-Line® Lug Connection, 14 to 3/0 AWG Al/Cu Wire, I-Line Mount, 9.73 in H x 4.48 in W x 4.8 in D
- Provides Overload and Short Circuit Protection
- Voltage Rating of 600V AC or 250V DC.
- Interrupt Current Rating of 25 kA at 600V.
- Features Long Time/Instantaneous Functionality
- Used in Power Distribution System
- UL Listed and CSA Certified
-
Manufacturer: Schneider Electric
-
Brand: Square D™
-
PN: HJA36150
-
CX SKU: 1022239
-
UPC: 785901651543
- Type: Molded Case Circuit Breaker
- Series: PowerPact™
- Frame: H
- Number of Poles: 3
- Amperage Rating: 150 A
- Voltage Rating: 600 VAC/250 VDC
- Interrupt Rating: 25 kA
- Trip Type : Thermal Magnetic
- Trip Range : 900 A Hold, 1700 A Trip
- Connection Type : I-Line® Lug
- Wire Size : 14 to 3/0 AWG Al/Cu
- Mounting Type : I-Line
- Dimensions : 9.73 in H x 4.48 in W x 4.8 in D
|
