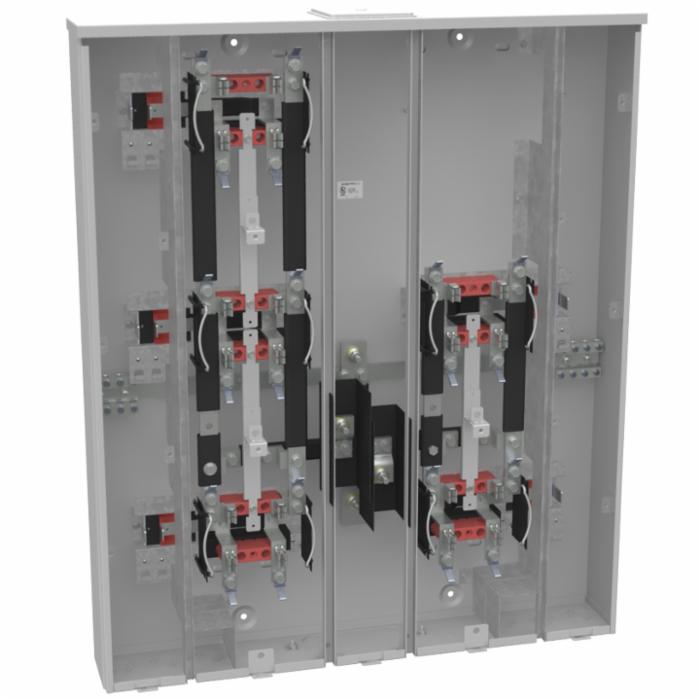

Milbank® Ringless Multi-Position Meter Socket With Main With Horn Bypass, 4 Jaw, 5 Position, 240 VAC, 125 A, 1 Phase, 60 Hz, Overhead/Underground Feed, Main Breaker Provision, Large Closing Plate, 3/8 Inch Stud Terminal, NEMA 3R Enclosure, Glass Polyester Insulation, Galvanized Steel, Powder Coat Finish, 37 in H x 31 in W x 4-7/8 in D
-
Manufacturer: Milbank Manufacturing
-
Brand: Milbank®
-
PN: U2855-X-KK-PED-CECHA
-
CX SKU: 870791
-
UPC: 784572136182
- Type: Ringless Meter Socket With Main
- Number of Jaws: 4
- Number of Positions: 5
- Voltage Rating: 240 VAC
- Amperage Rating: 125 A
- Phase: 1
- Bypass Type: Horn
- Frequency Rating : 60 Hz
- Feed Type : Overhead/Underground
- Number of Main Breakers : 6
- Main Breaker Size : Breaker Provision
- Hub/Closing Plate : Large Closing Plate
- Mounting Type : Surface
- Enclosure Rating : NEMA 3R
- Terminal Type : Stud
- Equipment Ground : Ground Lug
- Insulation : Glass Polyester
- Material : Galvanized Steel
- Finish : Powder Coat
|
