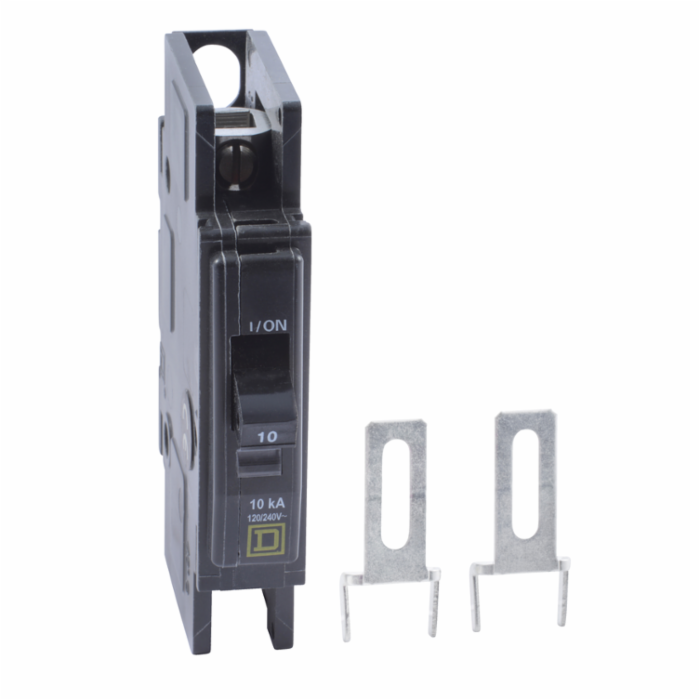

Square D™ Miniature Circuit Breaker, QO® Series, 1 Pole, 10 A, 120/240 VAC, 10 kA, Box Lug Connection, 14 to 2 AWG Al/Cu Wire, Unit Mount, 4.05 in H x 0.75 in W x 2.95 in D
- QOU miniature circuit breakers are tested and listed according to UL Standard 489 and CSA Standard C22.2 No. 5-02 for molded case circuit breakers and enclosures.
- QOU miniature circuit breakers are unit-mount (lug/lug) thermal-magnetic circuit breakers which:
- Provide a means to manually open a circuit.
- Automatically open a circuit under overload or short circuit conditions.
- Feature common tripping of all poles.
- Have a Visi-Trip trip indicator.
- Can be flush-, surface-, or DIN rail-mounted.
- Has lugs at both ends (cable-in/cable-out construction).
- Operate in any position.
- Are fully tested, UL Listed, and CSA certified for reverse connection without restrictive line/load markings.
|
-
