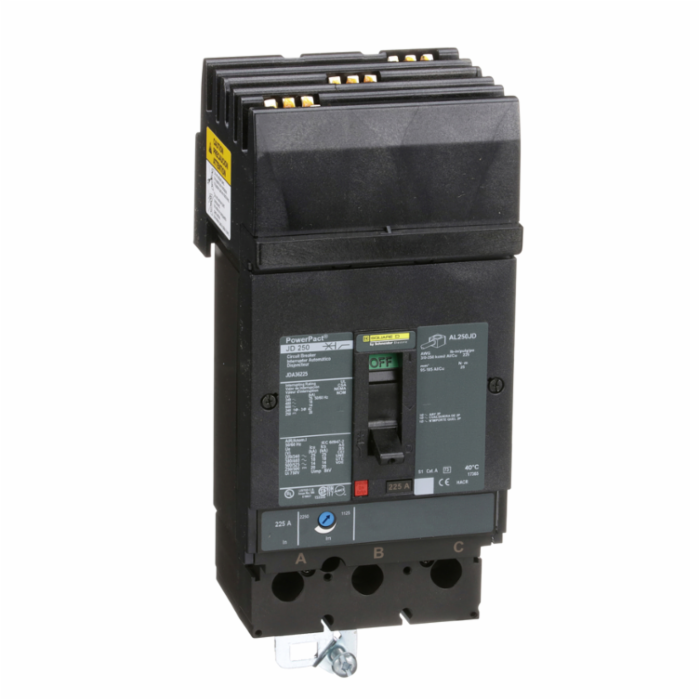

Square D™ Molded Case Circuit Breaker, J-Frame, PowerPact™ Series, 3 Pole, 225 A, 600 VAC, 14 kA, Thermal Magnetic Trip, 1125 A Hold, 2250 A Trip, I-Line® Lug Connection, 3/0 AWG to 350 MCM Al/Cu Wire, I-Line Mount, 11.48 in H x 4.48 in W x 5.87 in D
- Provides Overload and Short Circuit Protection
- Voltage Rating of 600V AC or 250V DC.
- Interrupt Current Rating of 14 kA at 600V.
- Features Long Time/Instantaneous Functionality
- Used in Power Distribution System
- UL Listed and CSA Certified
-
Manufacturer: Schneider Electric
-
Brand: Square D™
-
PN: JDA36225
-
CX SKU: 1026891
-
UPC: 785901834168
- Type: Molded Case Circuit Breaker
- Series: PowerPact™
- Frame: J
- Number of Poles: 3
- Amperage Rating: 225 A
- Voltage Rating: 600 VAC/250 VDC
- Interrupt Rating: 14 kA
- Trip Type : Thermal Magnetic
- Trip Range : 1125 A Hold, 2250 A Trip
- Connection Type : I-Line® Lug
- Wire Size : 3/0 AWG to 350 MCM Al/Cu
- Mounting Type : I-Line
- Dimensions : 11.48 in H x 4.48 in W x 5.87 in D
|
