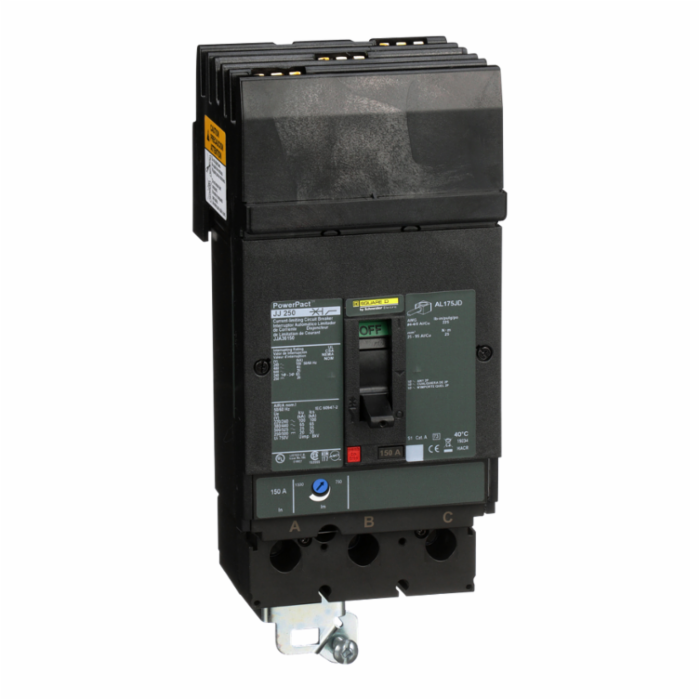

Square D™ Molded Case Circuit Breaker, J-Frame, PowerPact™ Series, 3 Pole, 175 A, 600 VAC, 225 kA, Thermal Magnetic Trip, 875 A Hold, 1750 A Trip, I-Line® Lug Connection, 4 to 4/0 AWG Al/Cu Wire, I-Line Mount, 11.48 in H x 4.48 in W x 5.87 in D
- Factor Seal Trip Unit
- Interrupting Rating Standard (80%) Rated
- UL Listed/CSA Certified as current-limiting
-
Manufacturer: Schneider Electric
-
Brand: Square D™
-
PN: JJA36175
-
CX SKU: 1022238
-
UPC: 785901700715
- Type: Molded Case Circuit Breaker
- Series: PowerPact™
- Frame: J
- Number of Poles: 3
- Amperage Rating: 175 A
- Voltage Rating: 600 VAC/250 VDC
- Interrupt Rating: 25 kA
- Trip Type : Thermal Magnetic
- Trip Range : 875 A Hold, 1750 A Trip
- Connection Type : I-Line® Lug
- Wire Size : 4 to 4/0 AWG Al/Cu
- Mounting Type : I-Line
- Dimensions : 11.48 in H x 4.48 in W x 5.87 in D
|
