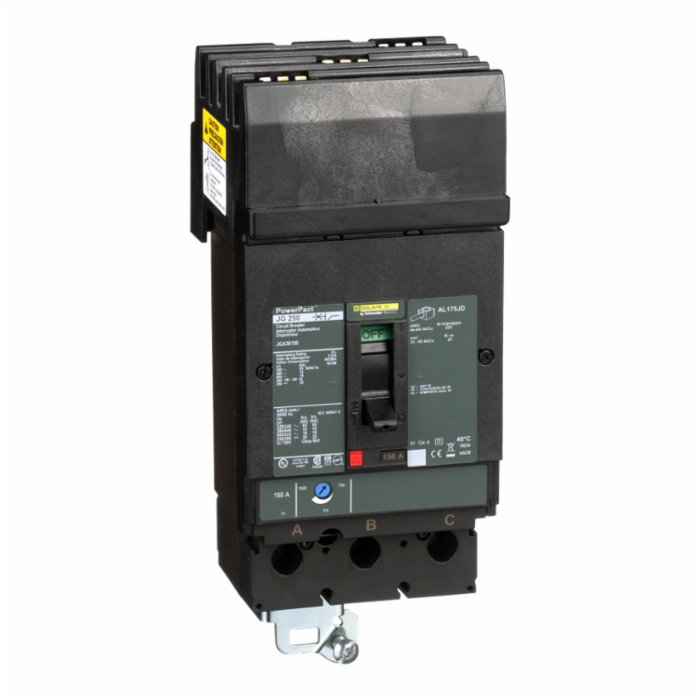

Square D™ Molded Case Circuit Breaker, J-Frame, PowerPact™ Series, 3 Pole, 150 A, 600 VAC, 18 kA, Thermal Magnetic Trip, 750 A Hold, 1500 A Trip, I-Line® Lug Connection, 4 to 4/0 AWG Al/Cu Wire, I-Line Mount, 11.48 in H x 4.48 in W x 5.87 in D
UL Listed, CSA Certified, IEC Rated
-
Manufacturer: Schneider Electric
-
Brand: Square D™
-
PN: JGA36150
-
CX SKU: 1011771
-
UPC: 785901795810
- Type: Molded Case Circuit Breaker
- Series: PowerPact™
- Frame: J
- Number of Poles: 3
- Amperage Rating: 150 A
- Voltage Rating: 600 VAC/250 VDC
- Interrupt Rating: 18 kA
- Trip Type : Thermal Magnetic
- Trip Range : 750 A Hold, 1500 A Trip
- Connection Type : I-Line® Lug
- Wire Size : 4 to 4/0 AWG Al/Cu
- Mounting Type : I-Line
- Dimensions : 11.48 in H x 4.48 in W x 5.87 in D
|
