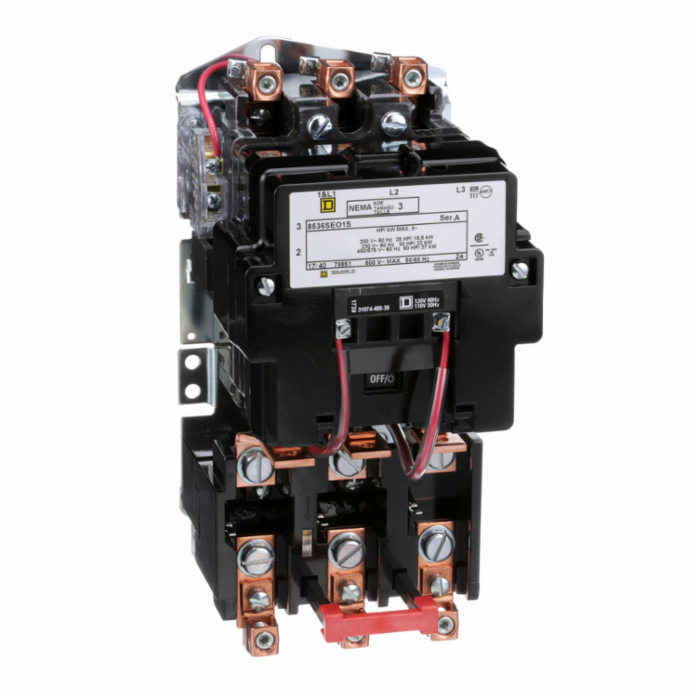

Square Dâ„¢ NEMA Starter, Type S Non-Reversing, 600 VAC, 90 A, 50/60 Hz Frequency, 25 hp, 30 hp, 50 hp Motor, 110/120 VAC Coil, 3 Pole, 3 ph, Screw Clamp Connection, Thermal Melting Alloy Overload Relay, NEMA 3/Open Enclosure, Starting Modes: Magnetic, 5-15/32 in W x 6-1/2 in D x 11-3/32 in H
Square D non-reversing magnetic starter, NEMA Size 3, 50 HP maximum at 600 VAC, 3 pole, with 110/120 VAC, 50/60 Hz operating coil and melting alloy overload relay block, melting alloy type overload relay, UL Listed, CSA Certified, CE Marked, open style.
-
Manufacturer: Schneider Electric
-
Brand: Square D™
-
PN: 8536SEO1V02S
-
CX SKU: 1021019
-
UPC: 785901788515
- Type: Magnetic Motor Starter
- Series: 8536
- Starter Type: NEMA
- Action: Non-Reversing
- Voltage Rating: 600 VAC
- Amperage Rating: 90 A
- Motor Power: 25 hp, 30 hp, 50 hp
- Coil Voltage : 110/120 VAC
- Frequency Rating : 50/60 Hz
- Number of Poles : 3
- Phase : 3
- Connection Type : Screw Clamp
- Overload Relay : Melting Alloy
- Control Type : No Control Units
- NEMA Size : 3
- Enclosure Type : Not Rated (Open Device)
- Material : Sheet Steel
- Dimensions : 5-15/32 in W x 6-1/2 in D x 11-3/32 in H
|
