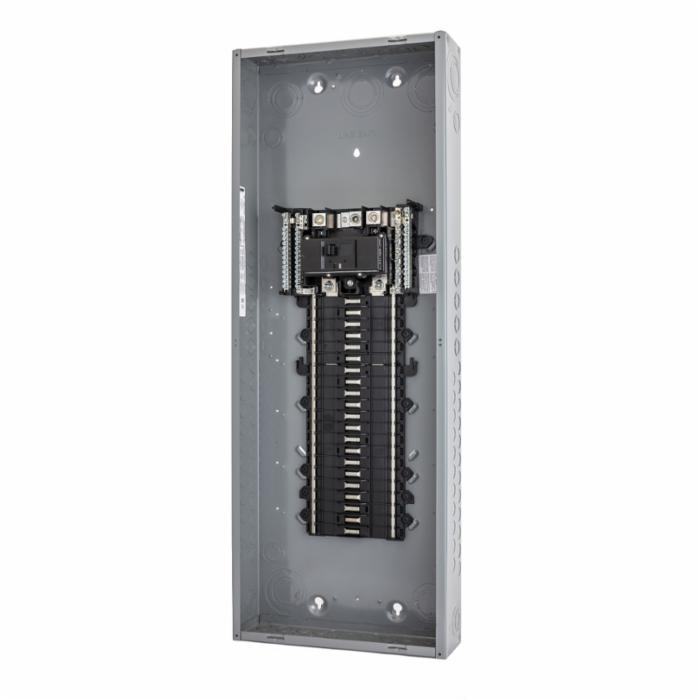

Square D™ QO® Convertible Main Breaker Plug-On Neutral Load Center, 120/240 VAC, 200 A, 1 Phase, 22 kA Interrupt, 40 Spaces, 40 Circuits, 3 Wire, 4 AWG to 250 MCM Al/Cu Wire, Lug Connection, NEMA 1 Enclosure, Copper Bus, Steel Housing, 33.78 in H x 14.25 in W x 3.75 in D
- Dimensions: 33.78 H x 14.25 W x 3.75 in. D
- Compatible with QO Plug-on Circuit Breakers & QO Plug-on Neutral Circuit Breakers
-
Manufacturer: Schneider Electric
-
Brand: Square D™
-
PN: QO140M200P
-
CX SKU: 1021096
-
UPC: 785901151142
- Type: Load Center
- Load Center Type: Main Breaker, Convertible
- Series: QO®
- Voltage Rating: 120/240 VAC
- Amperage Rating: 200 A
- Phase: 1
- Interrupt Rating: 22 kA
- Number of Spaces : 40
- Number of Circuits : 40
- Wiring Configuration : 3 Wire
- Wire Size : 4 AWG to 250 MCM Al/Cu
- Electrical Connection : Lug
- Enclosure Rating : NEMA 1
- Ground Bar : Not Included
- Plug-On Neutral : Yes
- Cover Type : Ordered Seperately
- Bus Material : Copper
- Housing Material : Steel
- Dimensions : 33.78 in H x 14.25 in W x 3.75 in D
|
-
Digest 178 Catalog 01: Load Centers
https://media.distributordatasolutions.com/schneider2/2019q4/2320c451da4fa112472398d2fb92cdd5d77fec2b.pdf
-
RoHS Declaration
https://media.distributordatasolutions.com/schneider2/2019q4/ced065a831595ba8a5bffff3994bac1adfa0516f.pdf
-
Specification Sheet
https://media.distributordatasolutions.com/schneider2/2019q4/5ac1d8d9c87859338e0fe6977f25d26204ff67b0.pdf
