Square D™ 9050JCK12V20 | Connexion

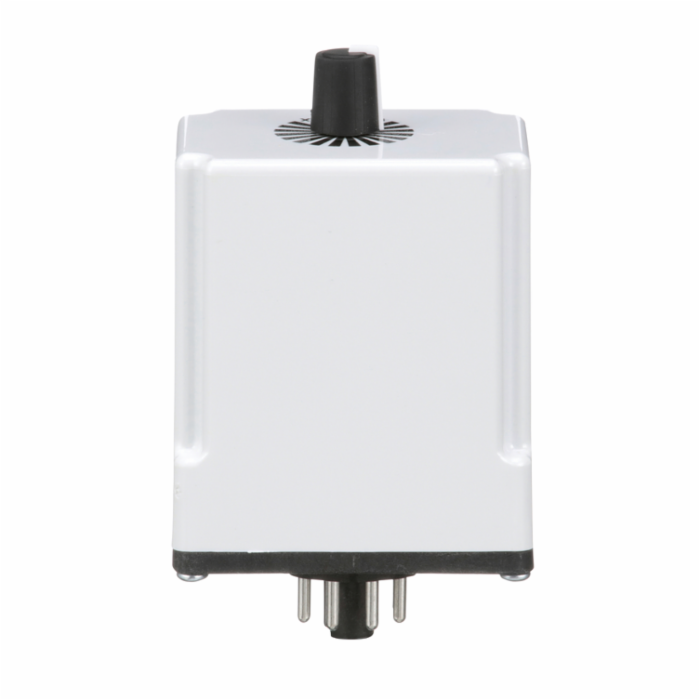

Square D™ 9050JCK12V20 1009092

Square D™

Timing Relay

  • loading
  • Manufacturer: Schneider Electric
  • Brand Name: Square D™
  • PN: 9050JCK12V20
  • PN: 9050JCK12V20
  • UPC: 785901032557
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

Square D™ Timing Relay, Type JCK Class 9050 Electronic, Operation Mode: On Delay, 240 VAC, 10 A, 1/2, 1/3 hp, 8 Pins, 2NO-2NC DPDT, 0.3 to 30 s, 110 to 120 VAC/VDC Coil, Tubular, IP20, -18 to 122 deg F, Socket Mount, 2.4 in H x 1.69 in W x 4.09 in D

  • 8 Pin
  • 2NO/2NC
  • ±1% Repeat accuracy
  • Transient protected
  • Horsepower Rated
  • RoHS compliant
  • Manufacturer: Schneider Electric
  • Brand: Square D™
  • PN: 9050JCK12V20
  • CX SKU: 1009092
  • UPC: 785901032557
  • Type: Timing Relay
  • Number of Pins: 8
  • Mounting Type: Socket
  • Dimensions: 2.4 in H x 1.69 in W x 4.09 in D
  • pdfElectronic Timing Relays Catalog https://media.distributordatasolutions.com/schneider2/2019q4/5d17afbf28aca3541a2d5f678ec36f67e5a13bc5.pdf
  • pdfCSA Certificate https://media.distributordatasolutions.com/schneider2/2019q4/646c121273e13a6d13ecfecf8b7b12aefed47b01.pdf
  • pdfUL Certification https://media.distributordatasolutions.com/schneider2/2019q4/ba6c266b3beb04e925c617fdd993cd10101b444b.pdf
  • pdfDeclaration Of Conformity https://media.distributordatasolutions.com/schneider2/2019q4/3f0408b6d16c38fc28c1b53dc0e4ed8e6edfca42.pdf
  • pdfDeclaration Of Conformity https://media.distributordatasolutions.com/schneider2/2019q4/9e9e64ef5ac0ee4dc6524cddf98b981ef114ce6b.pdf
  • pdfEnd Of Life Manual https://media.distributordatasolutions.com/schneider2/2019q4/101580c4185d19604984e90e5d4a469f0852ebf5.pdf
  • pdfElectronic Timing Relays https://media.distributordatasolutions.com/schneider2/2019q4/918425ffeb14aa79a7a54e02c0de631b366f4fc3.pdf
  • pdf9050JCK... Plug-in Timers, Product Environmental Profile https://media.distributordatasolutions.com/schneider2/2019q4/fa71f4c77814c70cd4697ecab698b486786e75ca.pdf
  • pdfREACh Declaration https://media.distributordatasolutions.com/schneider2/2019q4/245b2ea079d869fc7e6bf684b1a7e578d8096065.pdf
  • pdfRoHS China Declaration https://media.distributordatasolutions.com/schneider2/2019q4/253ebef41b788a0d81ccf2b26147cebc2282b7d5.pdf
  • pdfRoHS Declaration https://media.distributordatasolutions.com/schneider2/2019q4/1a35136bd8d95bbe897f25ed470960d65e9dd8cd.pdf
  • pdfSpecification Sheet https://media.distributordatasolutions.com/schneider2/2019q4/dd5eeeecd55f9233eb48d52effb5d7582f301545.pdf
