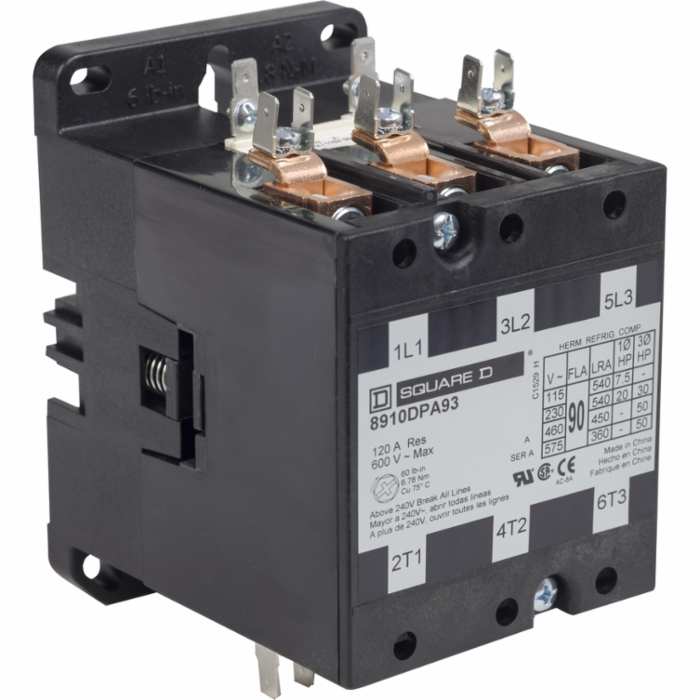

Square D™ Definite Purpose Contactor, Series: 8910DPA, 110/120 VAC Coil, 90 A Maximum Inductive Load, 120 A Maximum Resistive Load, 3 Pole, 3NO Contact, 50/60 Hz, 20 hp Maximum 1 Phase Rating, 50 hp Maximum 3 Phase Rating, Non-Reversing, 3 Phase, Box Lug/Quick-Connect, Open Device, 5.2 in H x 3.39 in W x 4.37 in D
Square D magnetic contactor, definte purpose, 3 pole, 90 amperes maximum at 600 volts, with 120 VAC, 60 Hz. operating coil, for heating, air conditioning and refrigeration applications, 3 pole, 90 amperes (inductive) and 120 amperes (resistive) maximum, UL recognized, CSA Certified, CE marked, open style.
-
Manufacturer: Schneider Electric
-
Brand: Square D™
-
PN: 8910DPA93V02
-
CX SKU: 1020076
-
UPC: 785901118398
- Type: Definite Purpose Contactor
- Series: 8910DPA
- Coil Voltage: 110/120 VAC
- Maximum Inductive Amperage: 90 A
- Maximum Resistive Amperage: 120 A
- Number of Poles: 3
- Contact Configuration: 3NO
- Frequency Rating : 50/60 Hz
- Maximum 1 Phase HP Rating : 20 hp
- Maximum 3 Phase HP Rating : 50 hp
- Reversing : No
- Phase : 3
- Connection Type : Box Lug/Quick-Connect
- Enclosure Type : Open
- Dimensions : 5.2 in H x 3.39 in W x 4.37 in D
|
-
Definite Purpose Control Catalog
https://media.distributordatasolutions.com/schneider2/2019q4/3e8ee6f4cce364ef402e225366506234e06a462d.pdf
-
CSA Certificate
https://media.distributordatasolutions.com/schneider2/2019q4/22bd43e3736ee1b8bbd5dde54dce8e9d47d5252a.pdf
-
UL Certification
https://media.distributordatasolutions.com/schneider2/2019q4/2ccaff955403a3b87ffad88da52ac1b95f77109b.pdf
-
UL Certification
https://media.distributordatasolutions.com/schneider2/2019q4/dce40a8f3e8fd935b3df7d0ccefbfab79266d03a.pdf
-
Motor Control Solutions for the North American Market
https://media.distributordatasolutions.com/schneider2/2019q4/5b9773d2fb99bdbee50534ac74af776b5c7fe58f.pdf
-
Information Label
https://media.distributordatasolutions.com/schneider2/2019q4/d055ddcbcabbb82a5be544f36dfc3c2b76e36113.pdf
-
Replacement Coils for 8910 DPA Contactors
https://media.distributordatasolutions.com/schneider2/2019q4/2544bc92b51ffa5213c33f3674a1014d21fb0e78.pdf
-
REACh Declaration
https://media.distributordatasolutions.com/schneider2/2019q4/ade6f6a6c45b7be81d1479543bfe8009eeb5e179.pdf
-
RoHS China Declaration
https://media.distributordatasolutions.com/schneider2/2019q4/ed6568c131fc4a9d02d127f5e3c22d572d5880af.pdf
-
RoHS Declaration
https://media.distributordatasolutions.com/schneider2/2019q4/7c23070c12c065413ab3ee8004912fa165cb1d9c.pdf
-
Specification Sheet
https://media.distributordatasolutions.com/schneider2/2019q4/c76e449147747969473401fd9802232859545f69.pdf
