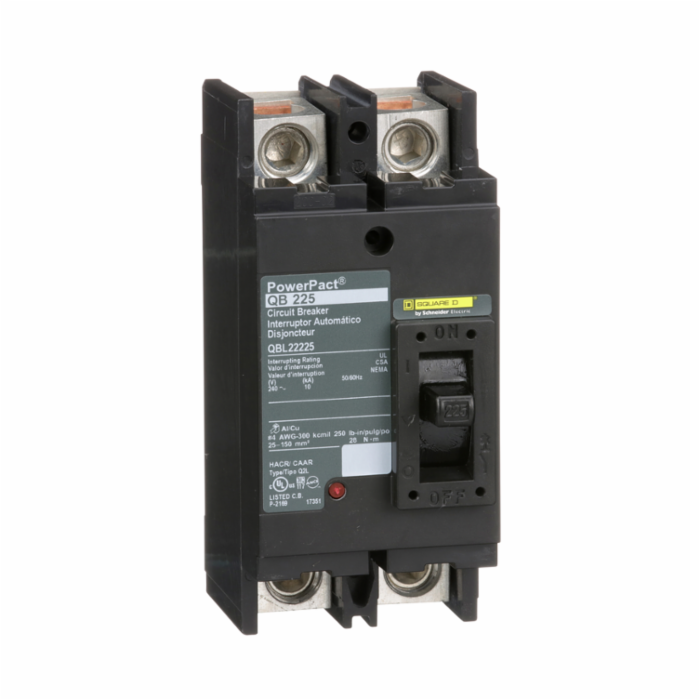

Square D™ Molded Case Circuit Breaker, Q-Frame, PowerPact™ Series, 2 Pole, 225 A, 240 VAC, 10 kA, Thermal Magnetic Trip, 1200 A Hold, 2400 A Trip, Line/Load Lug Connection, 4 AWG to 300 MCM Al/Cu Wire, Unit Mount, 6.47 in H x 4.5 in W x 3.93 in D
Terminal Wire Range: #4 AWG - 300 kcmil Al/Cu
Fixed AC Magnetic Trip: 1200A Hold and 2400A Trip
Available in Unit-mount for cabled or bus-mounted applications
Field-installable handle padlock attachment available for locking in On or Off position and may be used with available mechanical interlocks
UL 489 Listed, CSA, ANCE, IEC certified for world wide applications
Manufacturer: Schneider Electric
Brand: Square D™
PN: QBL22225
CX SKU: 1021182
UPC: 785901412663
Type: Molded Case Circuit Breaker
Series: PowerPact™
Frame: Q
Number of Poles: 2
Amperage Rating: 225 A
Voltage Rating: 240 VAC
Interrupt Rating: 10 kA
Trip Type : Thermal Magnetic
Trip Range : 1200 A Hold, 2400 A Trip
Connection Type : Line/Load Lug
Wire Size : 4 AWG to 300 MCM Al/Cu
Mounting Type : Unit
Dimensions : 6.47 in H x 4.5 in W x 3.93 in D
