Square D™

PowerPact™ L-Frame Molded Case Circuit Breaker

  • loading
  • Manufacturer: Schneider Electric
  • Brand Name: Square D™
  • PN: LHP36400MB
  • PN: LHP36400MB
  • UPC: 785901205128
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

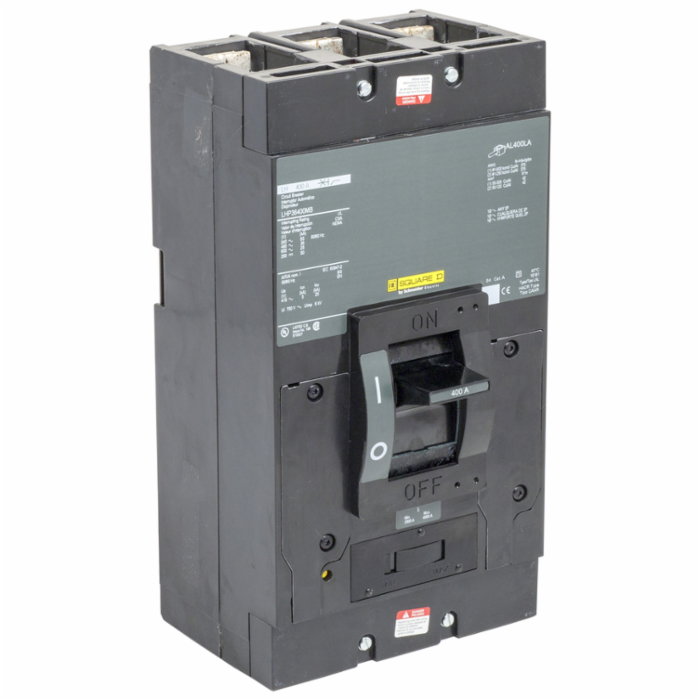

Square D™ Molded Case Circuit Breaker, L-Frame, PowerPact™ Series, 3 Pole, 400 A, 600 VAC, 25 kA, Thermal Magnetic Trip, 2000 A Hold, 4000 A Trip, Load Lug Connection, 1 AWG to 600 MCM Al/Cu Wire, Unit Mount, 12.5 in H x 6 in W x 4 in D

The PowerPact™ L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. L-frame circuit breakers are available with Micrologic™ electronic trip units only.

  • 65 kA at 240 VAC, 35 kA at 480 VAC, 25 kA at 600 VAC, 50 kA at 250 VDC interrupt rating
  • Manufacturer: Schneider Electric
  • Brand: Square D™
  • PN: LHP36400MB
  • CX SKU: 1019633
  • UPC: 785901205128
  • Type : Molded Case Circuit Breaker
  • Series : PowerPact™
  • Frame : L
  • Number of Poles : 3
  • Amperage Rating : 400 A
  • Voltage Rating : 600 VAC/250 VDC
  • Interrupt Rating : 25 kA
  • Trip Type : Thermal Magnetic
  • Trip Range : 2000 A Hold, 4000 A Trip
  • Connection Type : Load Lug
  • Wire Size : 1 AWG to 600 MCM Al/Cu
  • Mounting Type : Unit
  • Dimensions : 12.5 in H x 6 in W x 4 in D
