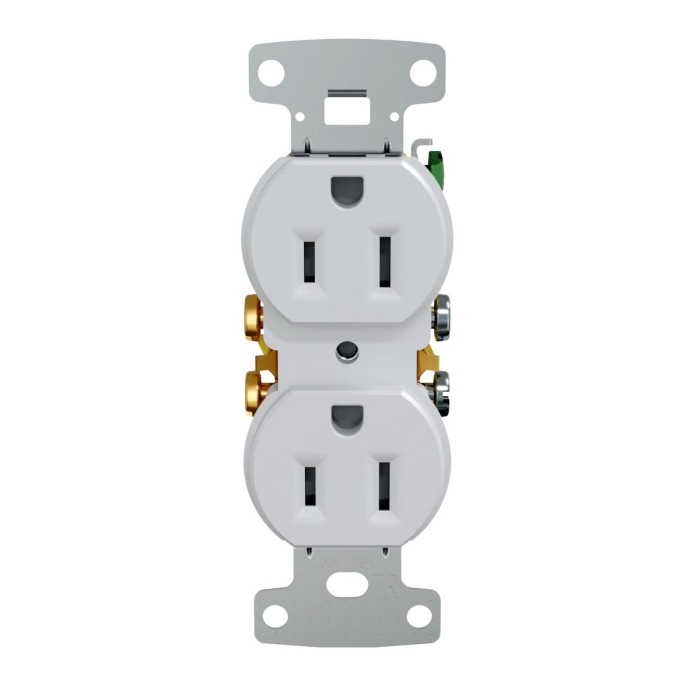

Hubbell Wiring Device-Kellems tradeSELECT® Straight Blade Receptacle, Duplex Self-Grounding Standard Tamper-Resistant Traditional, 125 VAC, 15 A, 2 Poles, 3 Wires, NEMA 5-15R, Residential Grade, -20 to 60 deg C, Push/Side Wired Terminal, Composite/Thermoplastic, White, 4.19 in L x 1.52 in W x 1.03 in H
Protection is always available with tamper-resistant receptacles. They are reliable, automatic and permanent. These have a new shutter mechanism to enable tamper-resistance to be built into standard and decorator duplexes, single receptacles, floor boxes and other power devices.
-
Manufacturer: HUBBELL
-
Brand: Hubbell Wiring Device-Kellems
-
PN: RR15SWTR
-
CX SKU: 1009381
-
UPC: 883778301544
- Type: Straight Blade Receptacle
- Style: Traditional Duplex
- Grade: Residential
- NEMA Rating: 5-15R
- Voltage Rating: 125 VAC
- Amperage Rating: 15 A
- Number of Wires: 3
- Number of Poles : 2
- Temperature Rating : -20 to 60 deg C
- Terminal Type : Push-In and Side Wired
- Material : Composite/Thermoplastic
- Color : White
- Dimensions : 4.19 in L x 1.52 in W x 1.03 in H
|
-
Specification Sheet
https://cdn-assets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiring_Device_Kellems_RR151LA_Datasheet.pdf
-
Technical Drawing
https://cdn-assets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiring_Device_Kellems_RR15KBKTR_Technical_Drawing.pdf
-
Video
https://www.youtube.com/watch?v=TErj9bnCvX4
