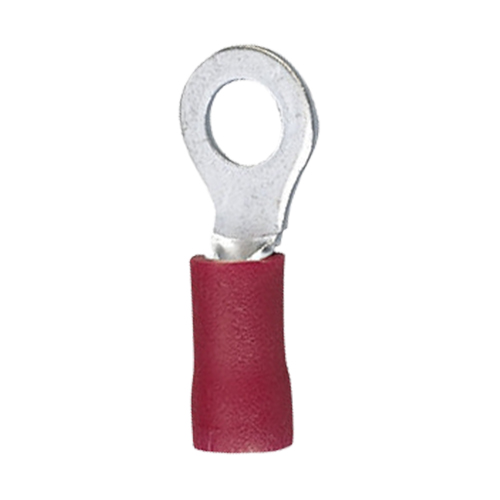

IDEAL® Vinyl Insulated Ring Terminal, 22 to 18 AWG Wire, #8 Stud, Butted Seam Barrel, 0.394 in L Barrel, 0.315 in W Tongue, 600 VAC, 75 deg C, Brass, Tin Plated, Red, 0.819 in OAL
-
Manufacturer: Ideal Industries
-
Brand: Ideal®
-
PN: 83-2131
-
CX SKU: 886897
-
UPC: 783250489770
- Type: Ring Terminal
- Connection Type: Crimp
- Insulation Type: Vinyl
- Insulation Color: Red
- Wire Range: 22 to 18 AWG
- Stud Size: #8
- Barrel Style: Butted Seam
- Barrel Size : 0.394 in L
- Tongue Size : 0.315 in W
- Voltage Rating : 600 VAC
- Temperature Rating : 167 deg F
- Material : Brass
- Finish : Tin Plated
- Overall Length : 0.819 in
- Package Quantity : 25 PK
|
-
Compliance Certificate
https://cdn-assets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_85_147_Compliance_Certificate.pdf
-
Material Composition Declaration
https://cdn-assets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_785e8886fd53fb87bc2bf98a888d86b1bc529daf979b10812668da2d0d57e56c.pdf
-
Specification Sheet
https://cdn-assets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_83_2131_Datasheet.pdf
-
Warranty
https://cdn-assets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_30_3194_Warranty.pdf
